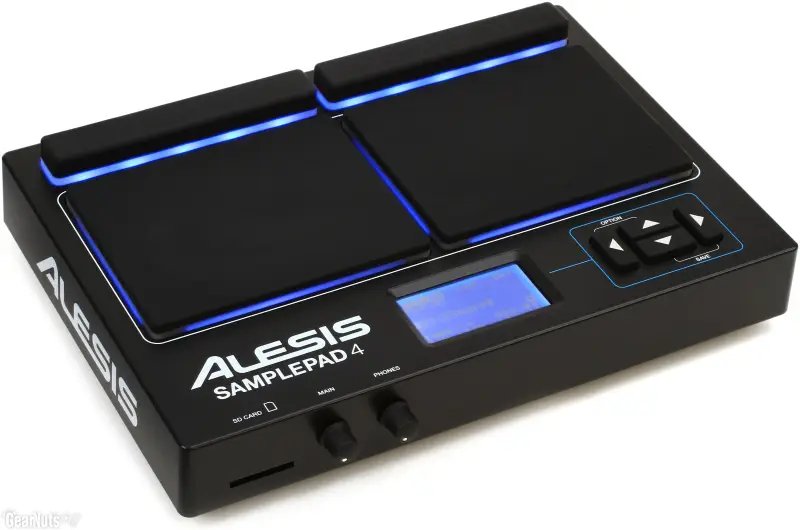

Alesis Sample Pad 4 Percussion and Sample-Triggering Instrument

Alesis Sample Pad 4 Percussion and Sample-Triggering Instrument

Key Features

• 4 velocity-sensitive rubber playing pads with blue LED illumination
• Built-in library of 25 acoustic and electronic percussion sounds
• 10 factory preset kits
• Load your own samples via SD/SDHC card
• Supports up to 89 user kits and 512 user samples per SD card
• Individual tuning and reverb adjustment for each sound
• Dual-zone external trigger input for adding another drum pad or trigger
• USB connection for transferring samples from Windows or macOS
• USB-MIDI output for controlling virtual instruments and DAWs
• Stereo main outputs and dedicated headphone output

Technical Specifications

• Pads: 4 velocity-sensitive rubber pads
• Internal Sounds: 25 percussion/electronic drum sounds
• Preset Kits: 10
• User Kits: Up to 89
• Maximum User Samples: 512
• Sample Format:
  • WAV
  • 16-bit
  • Mono or Stereo
  • Sample rates: 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz, or 11.025 kHz
• Storage: SD/SDHC cards up to 32 GB (FAT32)

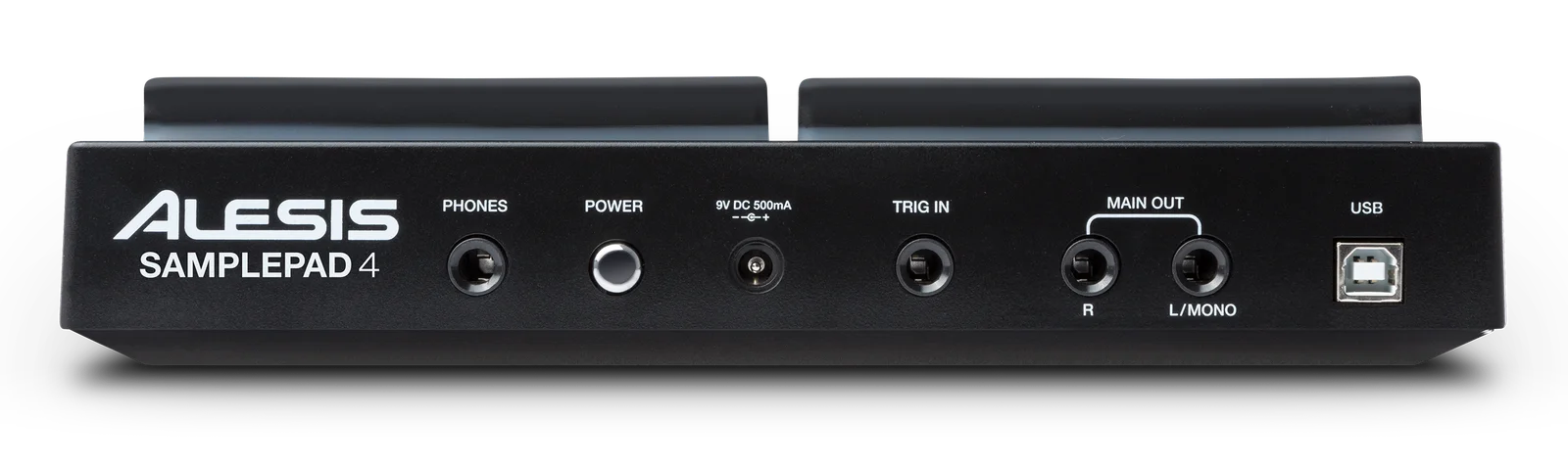

• Outputs:
  • Stereo 1/4″ Main Outputs (L/R)
  • 1/4″ Headphone Output
• Input:
  • Dual-zone Trigger Input
• Computer Connection: USB (sample transfer and USB-MIDI)
• Power Supply: 9V DC, 500 mA (center-positive)
• Dimensions: 26 × 19.1 × 6.4 cm (10.25″ × 7.5″ × 2.5″)
• Weight: Approximately 1.2 kg (2.55 lb)
