Let's face it - effective use of stage space is imperative when performing in a club and table/floor space can be extremely limited in a home or project studio setting. What can you do when you need up to 152 signal sources feeding 40 channels and 25 buses, as well as 8 studio-quality effects processors, and a recording interface - and you don't have space for a standard mixer because your drummer insists upon using bringing all of his massive drumset and your keyboardist absolutely has to have those three 3-tier stands surrounding him?

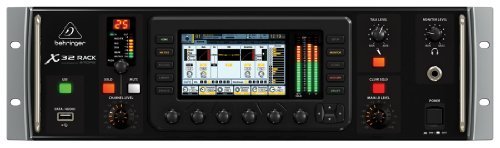

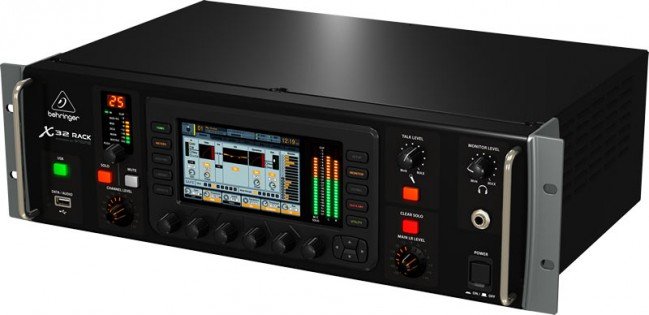

You reach for the newest tool in your audio arsenal - the Behringer X32 RACK mixer, which offers all the power and flexibility of the X32 digital mixer in a compact 3RU (yes, you read that correctly, 3RU!) chassis.

While every parameter of your mix can be adjusted directly on the X32 RACK through its 800 x 480 graphic UI, networked remote control literally makes room for new possibilities. Several instances of our XControl PC/Mac application, XiControl app for iPad/iPad mini and XiQ app for Phone/iPod touch allow controlling the mix from exactly the place you find most suitable. 16 MIDAS-design mic preamps provide plenty of inputs—and with its dual AES50 ports, X32 RACK can support up to six S16 digital snakes for massive I/O connectivity.

8 powerful stereo FX engines coupled with ultra-flexible routing options make the X32 RACK the ideal choice for handling audio now—and as your needs grow.

Behringer X32 Rack Features:

• 40-input channel, 25-bus, 3U rack-mountable digital mixer for live and installed sound application
• 16 MIDAS-designed, fully programmable mic preamps for audiophile soundquality
• 8 XLR outputs plus 6 additional line in/outputs, a phones connector and a talkback section with XLR mic input
• 32 x 32 channel USB2.0 audio interface
• iPad and iPhone apps for professional remote operation available free ofcharge—no host PC required
• High-resolution 5" day-viewable Color TFT for easy viewing of workflow components and parameters
• Main LCR, 6 matrix buses and all 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
• Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc.
• 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency (0.8 msec)
• Powerful scene management for convenient handling of complex productions
• 48-channel Digital Snake ready* via dual AES50 ports, featuring KLARK TEKNIK's SuperMAC networking capability for ultra-low jitter and latency
• USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
• ULTRANET connectivity for BEHRINGER's P16 Personal Monitoring System*
• Networked remote control via Ethernet for show setups with on-screen software editor
• Built-in expansion port for audio interface cards or digital networking bridges
• MIDI In/Out for remote scene recall or controlling other MIDI equipment
• Future firmware updates, incuding FX "Plug Ins", downloadable from behringer.com free of charge
• Conceived and designed by BEHRINGER Germany
  *The P16 Personal Monitoring System and Digital Snake are NOT included.

Behringer X32 Rack Specifications:

• Processing:
  • Number of Processing Channels:
    • 32 Input channels
    • 8 Aux In channels
    • 8 FX Return channels
    • 16 buses
    • 6 matrices
  • Main LRC
  • Internal Effects Engines, true stereo/mono: 8/16
  • Internal Total Recall Scenes (inc. preamp and fader): 100
  • Signal Processing: 40-bit floating point
  • A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385): 24-bit @ 44.1/48kHz, 114dB dynamic range
  • Local I/O latency (local in > console processing> local out): 0.8ms
  • Networked I/O Latency (stagebox in > console processing > stage box out): 1.1ms
  • Total number of accessible input sources/outputs: 150/158

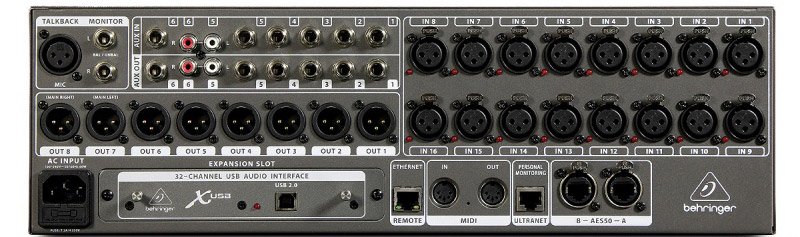

• Connectors:
  • XLR Inputs, programmable microphone preamps, designed by MIDAS: 16
  • Talkback Mic Input, XLR: 1 ext. (no internal mic)
  • RCA Inputs/Outputs: 2/2
  • XLR Outputs: 8
  • Monitoring Outputs, 1/4" TRS balanced: 2
  • Aux Inputs/Outputs, 1/4" TRS balanced: 6/6
  • Phones outputs, 1/4" TRS: 1 stereo (in front panel)
  • Digital AES/EBU output, XLR: n/a
  • AES50 ports, SuperMac: 2
  • Expansion card (optional): 32 channel audio input/output, variousstandards
  • P-16 Connector, ultranet (no power supplied): 1
  • MIDI Inputs/Outputs: 1/1
  • Ethernet, RJ45, rear panel, for remote control: 1
  • USB Type A, top panel, for audio and data export/import: 1
