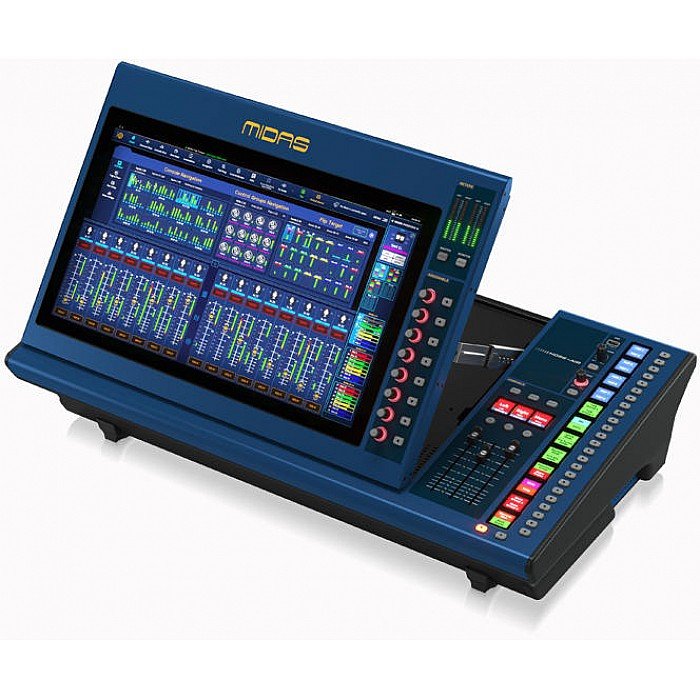

Midas Heritage HD96 Air Digital Mixer

Spesifikasi Midas Heritage HD96 Air Digital Mixer

Midas Heritage HD96 Air Digital Mixer

Performance Meets Portability with Heritage D Series DNA

Merging the legendary sound of the Midas H3K console with the advanced engineering of the Heritage D series, the Midas HD96-Air delivers studio-grade audio fidelity in a remarkably portable format. With 144 input channels and a pristine 96kHz sample rate, it sets a new benchmark for sonic clarity and professional-grade performance on the road or onstage. This powerhouse console boasts 123 time-aligned, phase-coherent mix buses, a vivid 21-inch full-color high-brightness TFT display, and an intuitive multi-gesture touchscreen interface that streamlines control in demanding live environments.

The HD96-Air features award-winning Midas mic preamps, dual HyperMAC and AES50 networking for up to 480 channels of I/O, and a dual network bridge format converter with asynchronous sample rate conversion supporting 128 bidirectional channels. You also get 24 VCAs, 24 POPulation groups, and 24 customizable user buttons paired with 12 high-definition LCDs — all backed by versatile analog I/O switchable to AES3. Topping it all off, the console offers up to 24 multichannel DSP effects engines and dual redundant power supplies for uncompromising reliability and performance. Engineered for the rigors of touring, designed with the stage in mind, and built to outperform, the Midas Heritage D HD96-Air redefines what’s possible in a compact digital live console.

Features
HD96-AIR
Midas’ HD96-AIR takes the next leap in digital console evolution — fusing the iconic sound of the H3K and engineering precision of the Heritage D Series with breakthrough portability. Finally, a Midas you can take anywhere. Designed for engineers who demand power without compromise, HD96-AIR features a stunning 21” high-brightness touchscreen with multi-gesture control, unlocking an ultra-intuitive workflow in a hyper-lightweight form factor. All the speed. All the detail. Now within arm’s reach.

Lightweight and Built to Perform
The HD96 platform was built with the future in mind — and HD96-AIR is just the beginning of that vision in action. Engineered for total control and maximum portability, it features a fully adjustable 21” full HD multi-touchscreen that puts every parameter — from faders to control groups to individual channels — right at your fingertips. The layout places user-assignable buttons exactly where you need them, enhancing speed and precision on the fly. And thanks to a smart, space-conscious design, HD96-AIR delivers all the power of the Heritage D Series in an ultra-lightweight chassis. Even with the flight case (sold separately), the full package weighs in at under 30 KG — ready for anywhere the show takes you.

The Graviton Mk 2 Processing Engine
At the heart of every Midas console is what matters most — sound. While others compromise, we’ve never wavered in our commitment to audio excellence. With the Heritage D series, we’ve taken the legendary Midas sound even further, with a next-generation 64-bit summing engine that delivers greater dynamic range, depth, and clarity than ever before.  The key to the Midas sound is in giving ultimate flexibility while still being delay compensated. Delivering a mix that breathes with natural warmth and stunning precision. No comb filtering. No inconsistencies. Just pristine audio, everywhere, all the time — whether you're pushing the mix to its limits or riding the smallest detail. Driving a Midas has never been easier.

• Type: Digital Mixer w/Touring Grade Road Case
• Channels: 144
• Inputs - Mic Preamps: 8 x XLR (Analog/AES3 in, switchable)
• Phantom Power: 8 Channels
• Outputs - Direct: 8 x XLR (Analog/AES3 out, switchable)
• Inputs - Digital: 4 x EtherCON (AES50), 2 x Optical/2 x Copper (Snake)
• Busses/Groups: 123 Busses, 24 VCAs, 24 POPulation Groups
• Inserts: Internal Asssignable
• Talkback: 1 x XLR
• MIDI I/O: 1 x In, 1 x Out
• Data I/O: 1 x Ethernet, 2 x HDMI
• Headphones: 1 x 1/4"
• USB: 9 x Type A, 2 x Micro (Service)
• Computer Connectivity: Wi-Fi, Bluetooth
• Bluetooth: 5.0 Dual Mode
• I/O Expansion Slots: 2 x Slots Available
• Word Clock: 2 x BNC (In/Out)
• A/D Resolution: 96kHz
• Effects: Yes
• Screen: 21" Glare Resistant Touchscreen
• Power Source: 2 x Standard IEC AC Cable
• Height: 8.3"
• Depth: 31.7"
• Width: 18.3"
• Weight: 36.83 lbs. (65.78 lbs. w/Flight Case)
• Manufacturer Part Number: HD96-AIRa
