Spesifikasi Shure QLXD14 Wireless Bodypack System

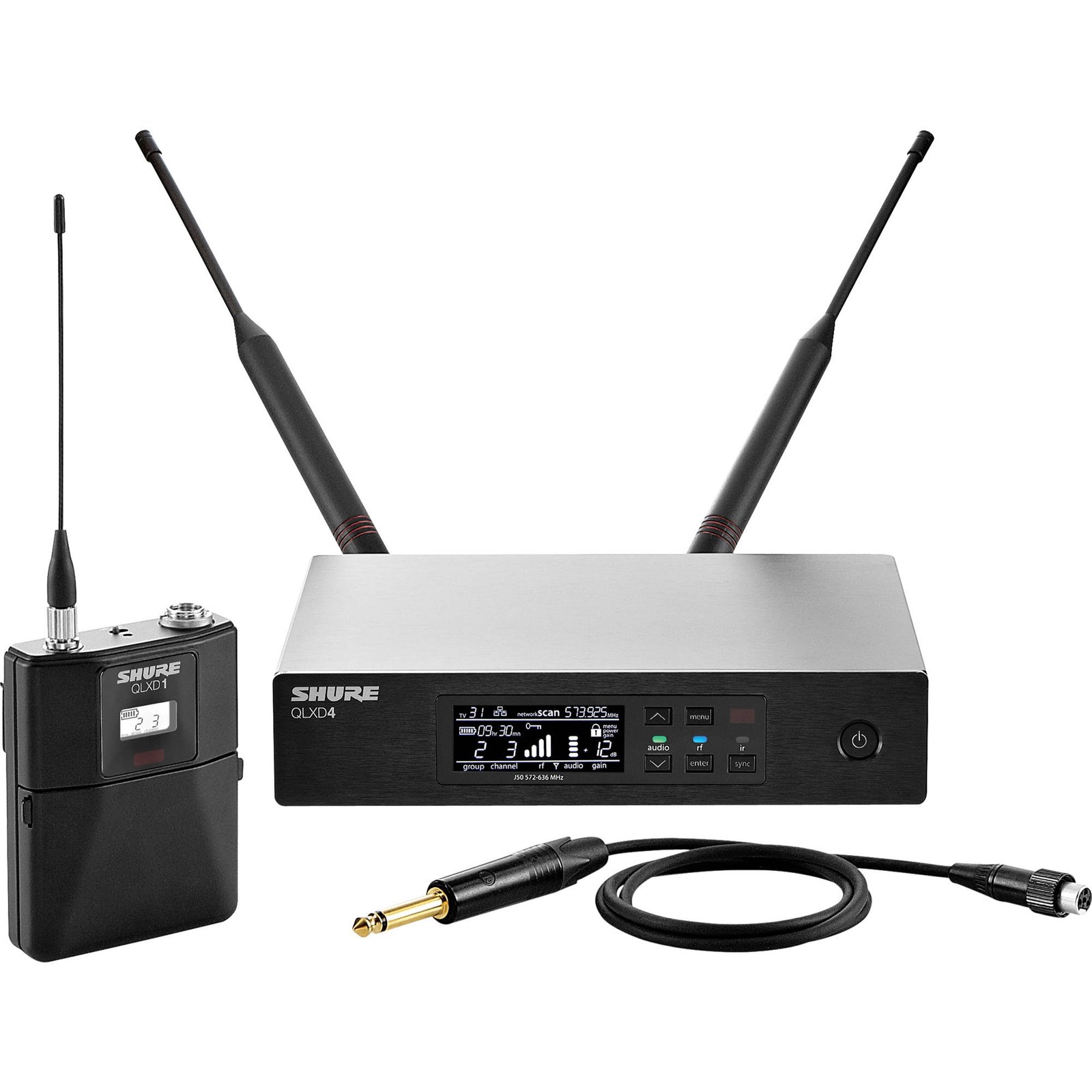

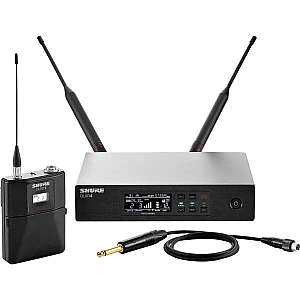

Shure QLXD14 Wireless Bodypack System

The streamlined operation of the Shure QLXD14 bodypack wireless system is an excellent solution for wireless vocals and instruments in midsized presentation spaces, music venues, and houses of worship. Featuring pristine 24-bit digital audio and remarkably efficient RF spectrum usage, the QLXD14 wireless system will give you clear, uninterrupted, worry-free performance. Incredibly easy to set up, the QLXD14 wireless system's receiver finds open frequencies and deploys them to its transmitter with the push of a button. Compatible with lavalier and headworn microphones, as well as wireless guitar/bass rigs, the Shure QLXD14 bodypack system is a solid, easy-to-use wireless solution.

Shure QLXD14 Bodypack Wireless System at a Glance:

• Highly flexible - works with any Shure lavalier or headworn microphone
• QLX-D wireless systems deliver easy-to-use, worry-free performance

Highly flexible - works with any Shure lavalier or headworn microphone

Whether you're using a lavalier mic in a lecture hall, a headworn mic in an aerobics class, or a wireless instrument rig on a concert stage, the versatile QLXD14 bodypack wireless system has got you covered. The QLXD14 wireless system is specifically designed to work with Shure WL183, WL184, WL185, and WL93 lav mics and the SM35 headworn mic; however, it will get along just fine with any Shure microphone that uses a TA4F connector.

QLX-D wireless systems deliver easy-to-use, worry-free performance

Utilizing transparent 24-bit digital audio, AES-256 encryption, and networked control options, Shure QLX-D wireless systems provide you with defined, streamlined performance. Transmitters are available in a variety of form factors including handheld, bodypack, headworn, lavalier, and instrument clip-on. You can also combine the various form factors for an incredibly versatile combo wireless setup. Various power options are available, including the Shure SB900 lithium-ion rechargeable battery.

Shure QLXD14 Bodypack Wireless System Features:

• Over 120dB of dynamic range provide ample headroom
• Digital predictive switching diversity ensures solid RF connection
• AES 256-bit encryption for secure transmission
• One-touch sync function for easy setup
• LCDs provide easy-to-navigate menus and controls
• Selectable display mode shows group/channel, frequency, or battery runtime
• Audio and RF LED meters let you monitor levels and signal strength
• External charging contacts for docked charging
• Mac, PC, and iOS-compatible for remote operation
• Rugged construction provides durability

Tech Specs

• Simultaneous Systems Per Band: Up to 60
• System: Analog/Digital: Digital
• System: Frequency Range: 470-534 MHz
• System: Operating Range: 300 ft. Line-of-sight
• System: Frequency Response: 20Hz-20kHz
• System: Channel Selection: Auto
• Transmitter: Form Factor: Bodypack
• Transmitter: Mute Feature: Mute
• Transmitter: Battery Type: 2 x AA
• Transmitter: Battery Life: 9 hours
• Transmitter: Connector: 1 x TA4M
• Transmitter: Dimensions: 3.38" x 2.57" x 0.92"
• Transmitter: Weight: 0.3 lbs.
• Receiver: Antenna Type: Detachable
• Receiver: Type: Rackmount
• Receiver: Rackmountable: Yes
• Receiver: Rack Spaces: 0.5U
• Receiver: Front Panel Display: Yes
• Receiver: Displays: LCD
• Receiver: Outputs: 1 x XLR, 1 x 1/4"
• Receiver: Dimensions: 1.63" x 7.75" x 5.94"
• Receiver: Weight: 1.71 lbs.
