Spesifikasi JTS RU-8011DB/RU-850LTH Wireless Double Microphone System

JTS RU-8011DB/RU-850LTH Wireless Double Microphone System

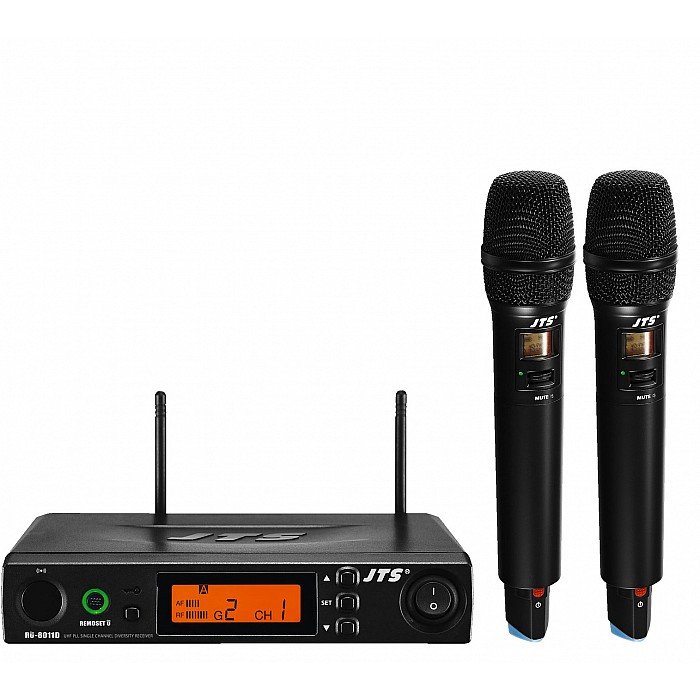

Wireless dual system RU-8011DB with Handheld Microphone 2 x RU-850LTH. 6 groups with up to 22 channels are pre-programmed. In total there are 1440 selectable frequencies. You can adjust the frequency in 0.025 MHz increments for multi-channel installations. 36 MHz bandwidth in the frequency range 614 - 650 MHz. Built-in self-scanning, adjustable sensitivity, adjustable output power 10mW/50mW. The Remoset sends settings made to the transmitter via radio waves, which means that you can, for example, change the channel on the system without having to be next to the transmitter. Digital volume control.

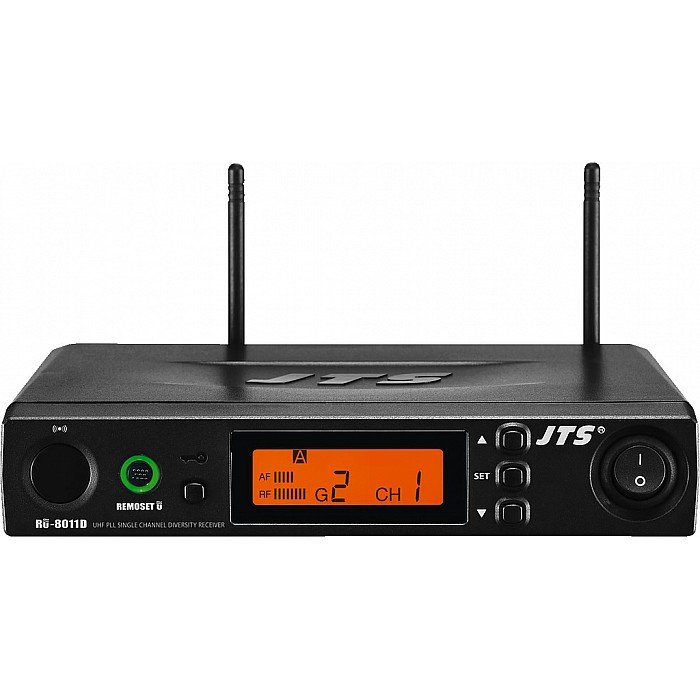

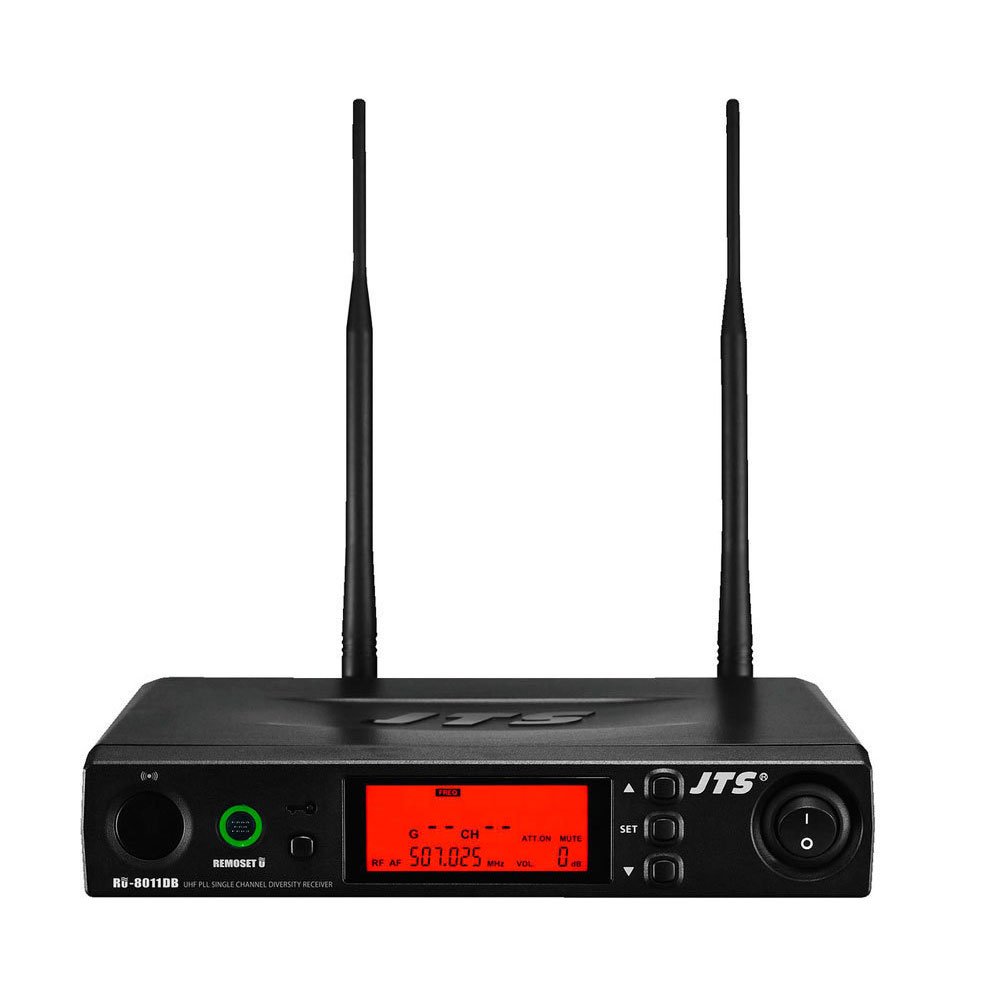

RU-8011DB Specifications

o Frequency Preparation PLL Synthesized Control.
o Carrier Frequency Range 614~650 MHz.
o Frequency Setting REMOSET U.
o Receiving Mode Antenna Diversity.
o Bandwidth 36MHz.
o S/N Ratio >105dB(A).
o T.H.D <0.6%@1KHz.
o Sensitivity -95dBm,S/N>80dB.
o Rejection Ratio >80 dB.
o Frequency Response 50Hz~16KHz±2dB.
o Antenna Type BNC Socket.
o Antenna Booster Power DC12~15V/100mA.
o Display LCD.
o Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter,
o RF Meter, Frequency Scan, Audio Level, Volume, Controls Power ON/OFF, Group, Channel, Frequency,
o Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF).
o Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone.
o 6.3 Phone Jack/ -10dBV.
o XLR Jack/ -4dBV(Line) ? -24dBV(MIC).
o Audio Output Impedance 600O.
o Squelch Pilot Tone & Noise Mute.
o Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced.
o Power Supply DC12~15V/300mA.
o Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D).

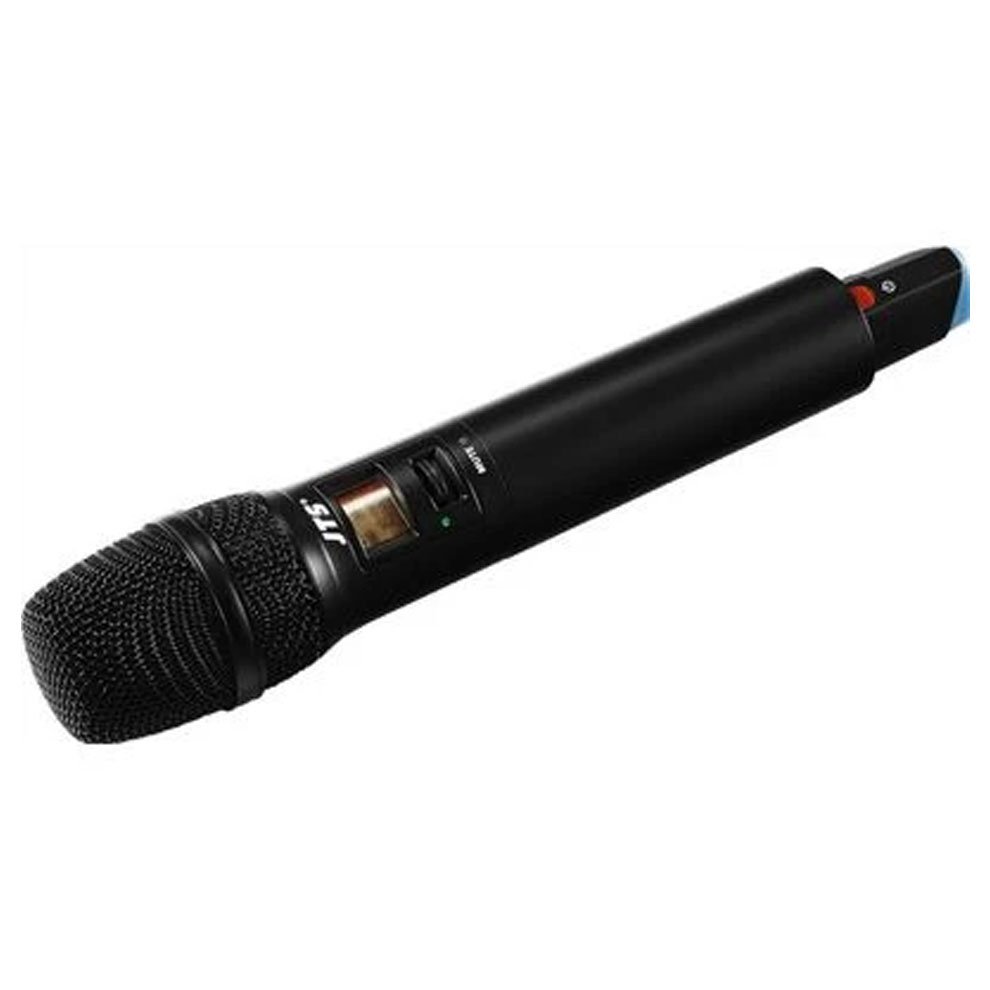

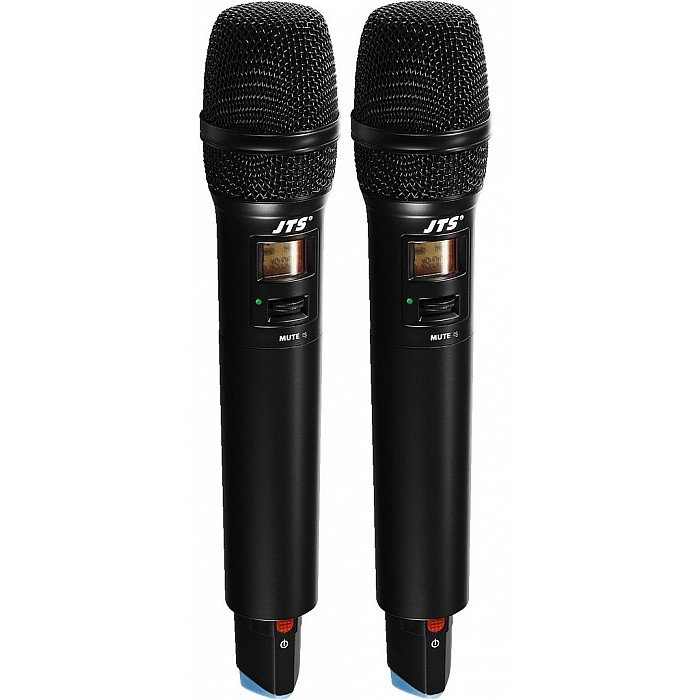

RU-850LTH (Handmicrophone)

o Frequency Preparation PLL Synthesized Control
o Carrier Frequency Range 614~650MHz
o Frequency Setting REMOSET U(Receive)
o RF Outpus Low / High
o Stability <±10KHz@Fc
o Frequency Deviation ±48KHz
o Spurious Emissions <-50dBc
o Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
o Display LCD+LED
o Controls Power, Mute, Group, Channel,
o Frequency, Gain Adjust, Auto Power Off, Key Lock
o Battery UM3, AA
