Spesifikasi FBT HiMaxx 40A Active Loudspeaker

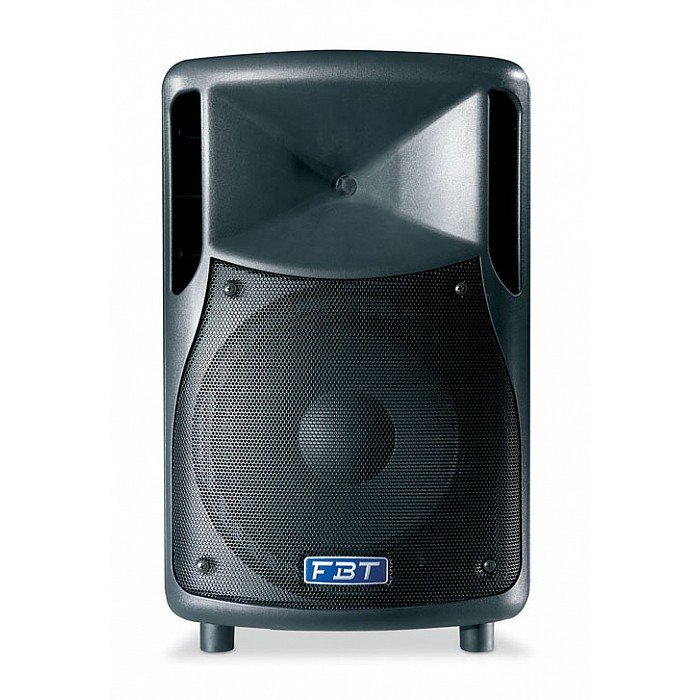

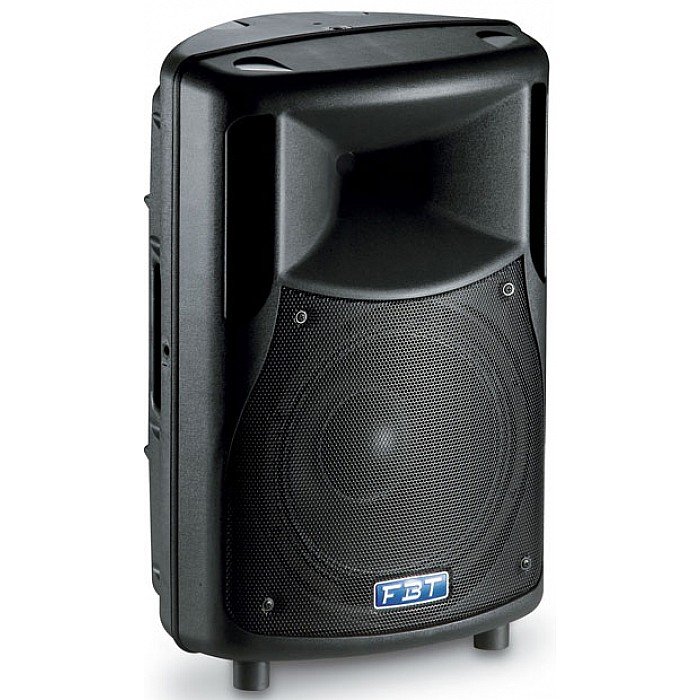

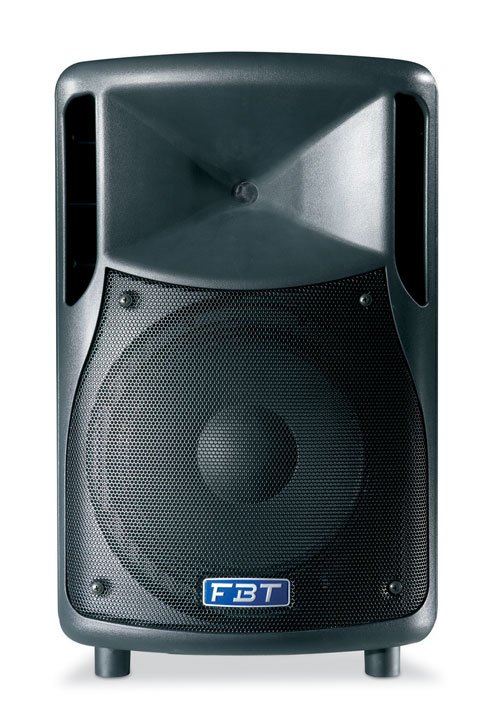

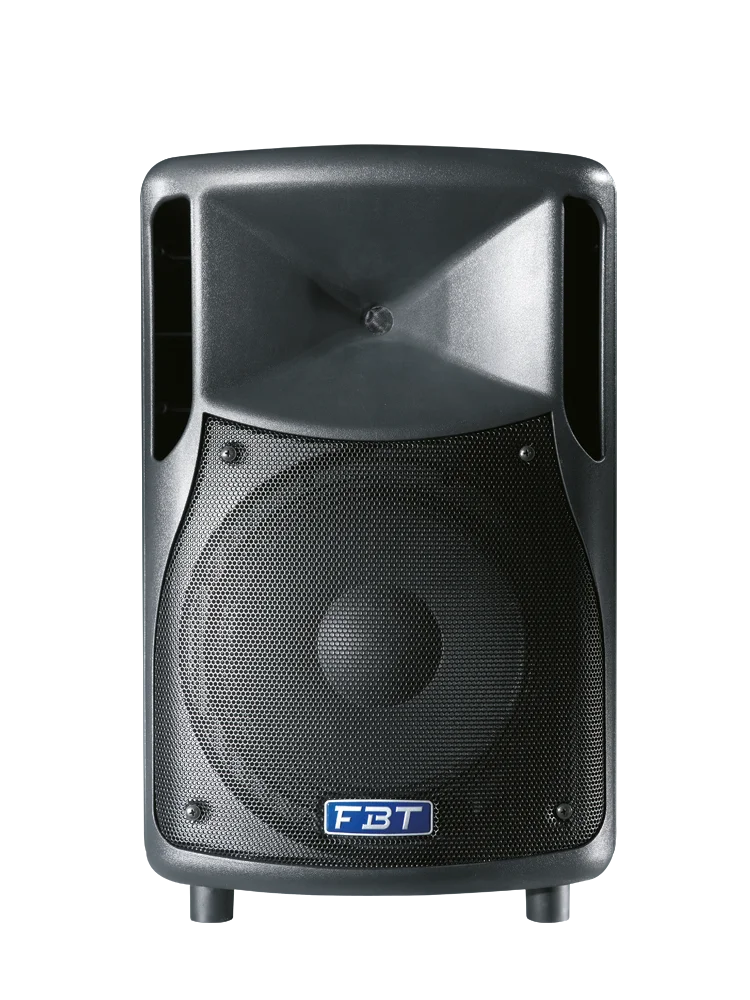

FBT HiMaxx 40A Active Loudspeaker

With the HiMaxX series, FBT establishes a reference point on the scenario of 12” and 15” sound reinforcement polypropylene enclosures, introducing performance and technical content of an impressive standard. The engineering of the enclosures, the use of switch mode power supplies and high efficiency. Power amplifiers, the custom design of the transducers made FBT’s R&D team achieve the maximum in power/weight ratio.

Three models; two 2-way full-range enclosures in polypropylene, HiMaxX 40 (12”+1”) and HiMaxX 60 (15’’+1.4”), plus a compact 18’’ bandpass SUB in birch plywood (HiMaxX 100Sa). Compact and light weight, HiMaxX brilliantly solve all the most demanding needs for bands, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ design and optional accessories.

A powerful dynamic design for aggressive clean-cut lines. A sturdy light-weight enclosure that ensures great versatility and is ready for installation, thanks to its special mounting points and optional accessories. The asymmetrical design enables the enclosures to be used as stage monitors.

500W + 150W - 127dB SPL Processed Active Monitor

• 2-way, bi-amplified in Bass-reflex design
• B&C custom designed 320 mm (12”) neodymium woofer with 75 mm (3”) voice coil
• B&C 25 mm (1”) compression driver with 44 mm (1.7”) voice coil
• 500Wrms PWM LF power amplifier
• 150Wrms Class G HF power amplifier
• Switch mode power supply for an excellent ratio weight/power
• Analog signal processor with limiter

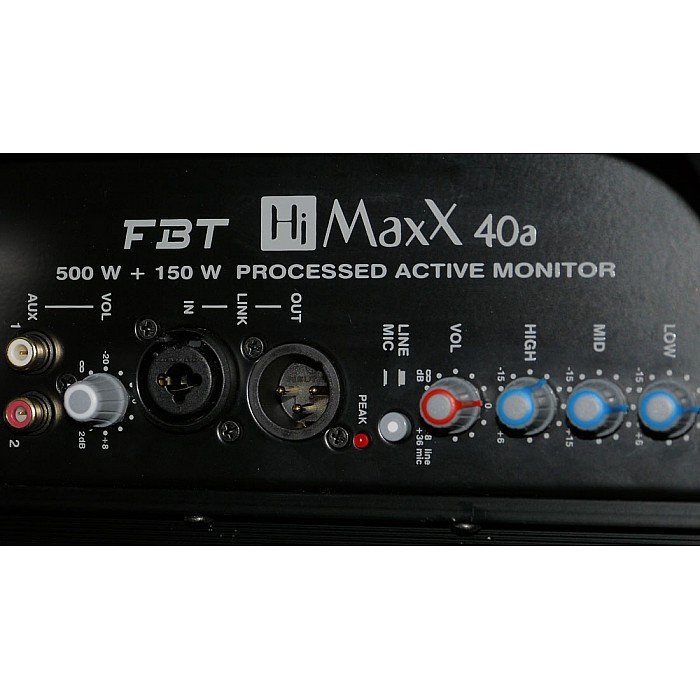

• Completely redesigned control panel with:
• Gain and Volume functions in a single potentiometer to improve user friendliness improving the dynamic range and input signal/noise ratio
• Combo XLR/jack input XLR link
• Mic/Line selection
• Independent RCA input channel with separate volume control to connect external devices such as MP3, CD, PC players
• 3-band EQ (Bass, Mid, High)
• Ground-Lift
• Diagnostic LED
• 90°H x 60°V constant directivity horn
• 4 x M10 anchoring points, 35 mm ø (1.38”) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles
• Enclosure suitable for stacking
