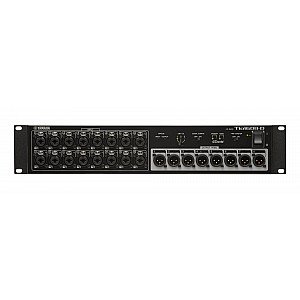

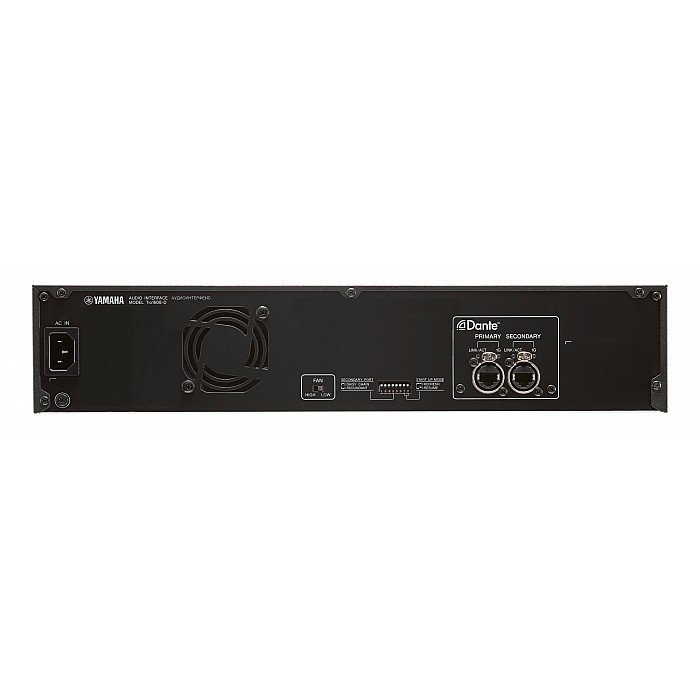

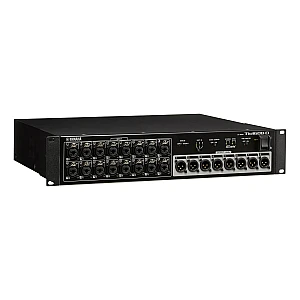

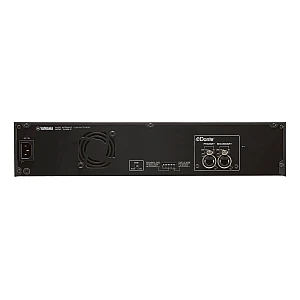

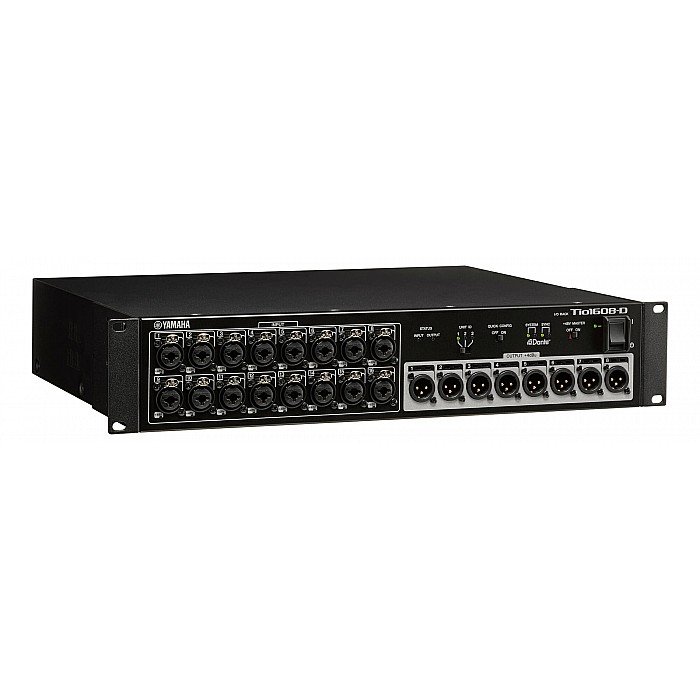

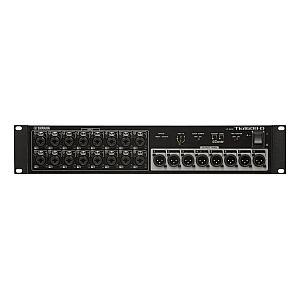

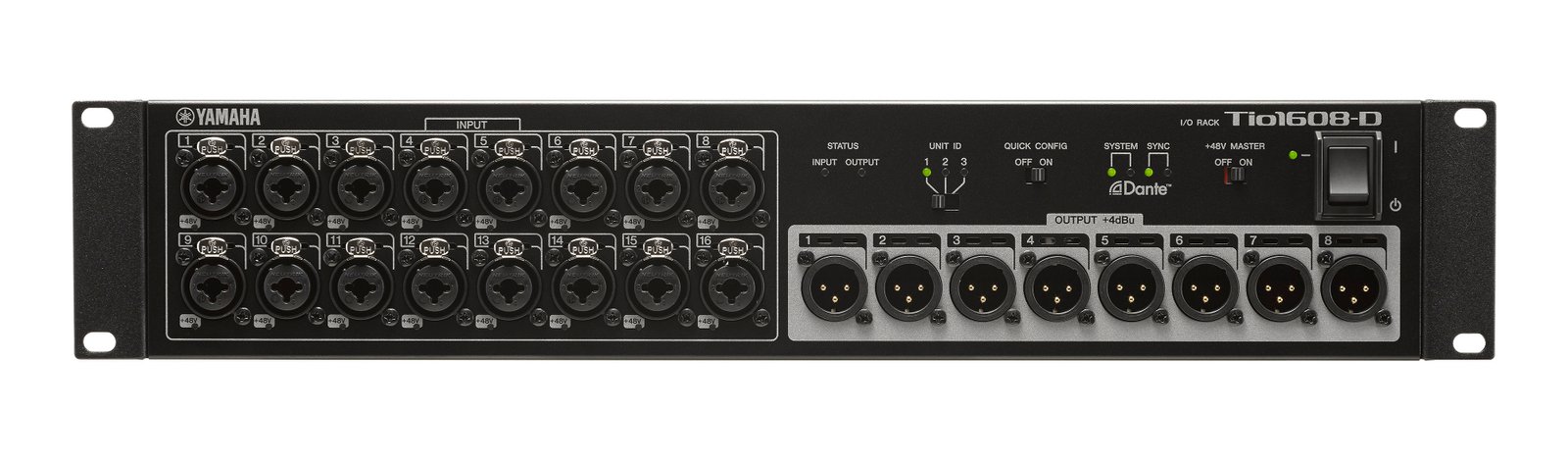

Yamaha Tio1608-D2 Dante Stagebox built in Rack I/O 16 channel input + 8 output for Mixer Yamaha DM3 & TF series

Spesifikasi Yamaha Tio1608-D2 Dante Stagebox built in Rack I/O 16 channel input + 8 output for Mixer Yamaha DM3 & TF series

Yamaha Tio1608-D2 Dante Stagebox built in Rack I/O 16 channel input + 8 output for Mixer Yamaha DM3 & TF series

The Yamaha Tio1608-D stage box provides 16 inputs and eight outputs for your TF series console, putting your I/O onstage where it's most convenient. Connect to your console with any standard Cat 5e LAN cable for high-quality, low-latency audio transfer. For more I/O, you can connect up to three Tio1608-D boxes onstage for 48 inputs and 24 outputs. And live sound engineers at here love the ability to control the Tio1608-D preamplifiers directly from a TF series console. For a high-performance stage box solution, check out the Yamaha Tio1608-D.

Yamaha Tio1608-D Stage Box Features at a Glance:

• Digital stage box for Yamaha TF series consoles
• 16 high-quality mic preamps are controllable from your console
• Connect up to 3 simultaneously for 48 inputs and 24 outputs
• Requires NY64-D Dante interface card (sold separately)
• Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)

Tech Specs

• Type:Digital Stage Box
• Compatibility:Yamaha TF Mixers with Dante Cards
• Channels:16 x 8
• Inputs - Mic Preamps:16 x XLR-1/4" combo (mic/line)
• Outputs - Main:8 x XLR (line +4dBu)
• Data I/O:2 x EtherCon (primary, secondary)
• Computer Connectivity:Ethernet Dante
• Features:Connect multiple Tio Racks
• Rackmountable:Yes
• Power Source:Standard IEC AC cable
• Height:3.5"
• Depth:14.37"
• Width:18.87"
• Weight:12.6 lbs.
