Yamaha Yamaha Rio3224 D3 32 Input and 24 Output Dante Stage Box

Spesifikasi Yamaha Rio3224 D3 32 Input and 24 Output Dante Stage Box

Yamaha Rio3224 D3 32 Input and 24 Output Dante Stage Box

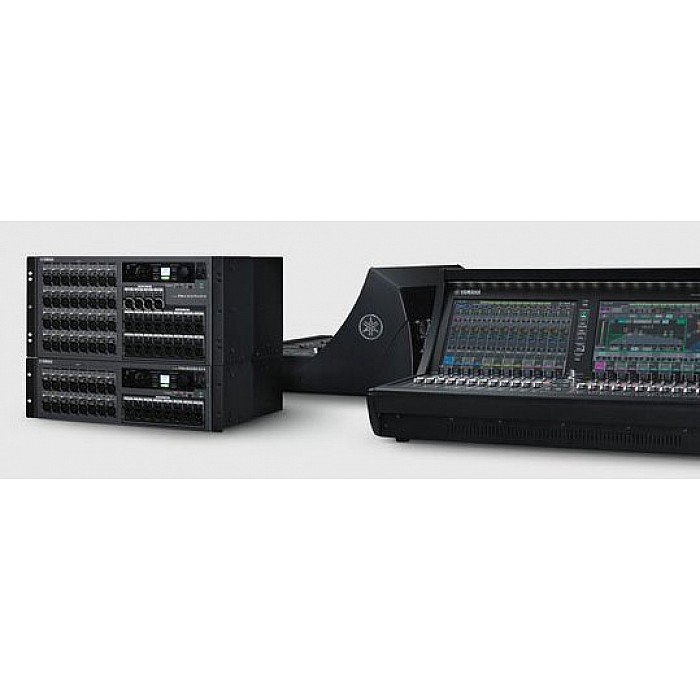

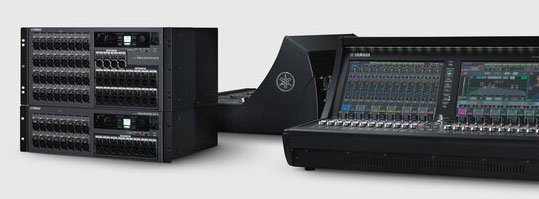

Next-Gen I/O Box for Yamaha's RIVAGE PM Series Consoles

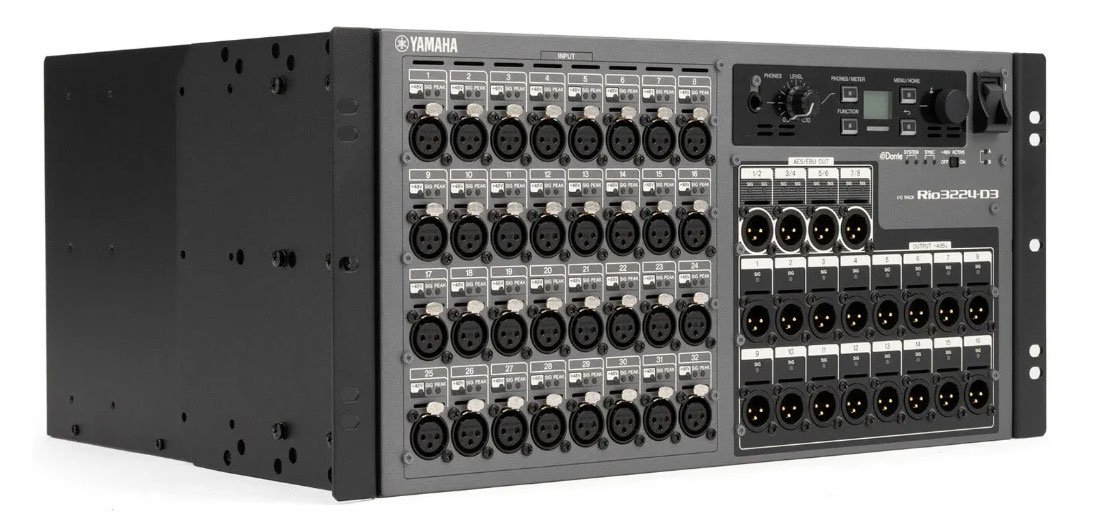

The Rio3224-D3 is a high-performance 32-input x 24-output I/O unit for Yamaha's CL, QL, and RIVAGE PM series consoles. This digital stage box is loaded with 32 pristine head amplifiers (with switchable 48V phantom power for condenser mics) that deliver the transparent, natural sonics Yamaha is known for. The Rio3224-D3 connects directly to a Dante digital audio network, giving you flexible system configuration at up to 96kHz. You also get four stereo AES outputs to expand your connectivity. Enjoy peace of mind, thanks to dual redundant power supplies — you can also daisy-chain connections and you'll benefit from local control of gain and other parameters. Finally, the live sound pros at here appreciate how the Rio3224-D3's character display offers easy visual confirmation of your settings.

Features:

Dante stage box
32 x 24 analog I/O
4 stereo AES outputs
16 head amplifiers (with switchable 48V phantom power)
32-bit AD/DA
Connects directly to a Dante digital audio network
Optimized dynamic range and noise
Delay/Polarity/Gain function on output port
I/O setting on LCD screen
Headphone jack for monitoring
Additional control-dedicated network port
Sampling frequency for external clock: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Signal delay: <1.7ms
Benefit from local control of gain and other parameters
Character display offers easy visual confirmation of your settings
Supports daisy-chain connections
Redundant power supplies

Specifications

Type: Stage Box
Compatibility: Yamaha CL, QL, and RIVAGE PM
Channels: 32 x 24
Inputs - Mic Preamps: 32 x XLR
Phantom Power: 32
Outputs - Main: 16 x XLR
Data I/O: 3 x Ethernet (2 x Dante, 1 x Link)
Rackmountable: Yes
Power Source: 2 x Standard IEC (Redundant)
Height: 8.66"
Depth: 14.57"
Width: 18.9"
Weight: 29.76 lbs.
Manufacturer Part Number: Rio3224-D3
