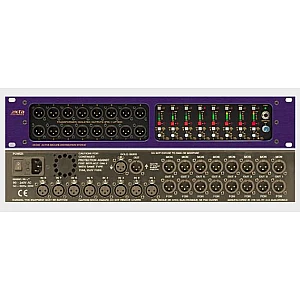

XTA DS800 Mic/Line Distribution System

With exceptional dynamic range as standard, each input is split into 2 transformer-isolated outputs (-10dB level) and 2 actively balanced outputs. The unit can be internally reconfigured to give more than the standard 4 outputs from each input, up to a total number of 32 outputs. Each input features remote activated pad, adjuustable gain, mic/line switch, 48V phantom power, 5 segment LED metering, and “listen” facility.

A headphone output with “listen” access to each channel and associated gain control are also provided. When using multiple units the “listen” facility can be cascaded such that any input channel may be listened to via a single headphone output.

Features

• Self-contained, 8 input x 32 output unit with auto-switching power supply, will work down to 60V mains voltage, 50/60 Hz, no external power supply needed
• Ergonomically designed front panel with recessed controls resulting in a ‘cable and connector free’ control area
• 5-segment LED meters on every input giving instant indication of input levels and/or clipping
• Exceptional dynamic range
• Headphone “listen” facility, which can be expanded when using multiple units
