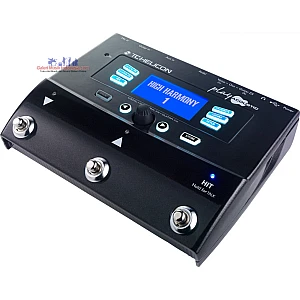

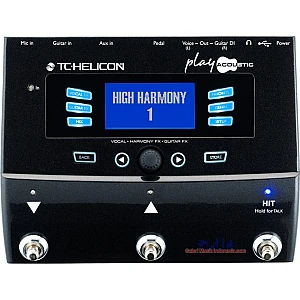

TC Helicon Play Acoustic Voice Processor for Acoustic Guitarists

Analog Inputs

• Connectors: Mic.: balanced XLR, Guitar: unbalanced 1/4³ TS, Aux: 1/8³ stereo mini jack
• Impedance: Balanced/Unbalanced: Mic.: 2.14/1.07 kOhm
• Mic Input Level @ 0 dBFS: -42dBu to +13dBu
• EIN @ Max Mic Gain Rg = 150 Ohm : -127 dBu
• Mic SNR: > 104 dB
• Phantom Power: +48V (on/off via Setup menu)
• Guitar Input impedance: 1 MOhm
• Guitar Input Level @ 0 dBFS: 12 dBu
• Guitar Input SNR: > 115dB
• Aux Input Level @ 0dBu: +2dBu
• A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted

Analog Outputs

• D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
• Connectors, balanced: XLR
• Output Impedance Balanced/ Unbalanced: 80/40 Ohm
• XLR Output 0dBFS: +2 dBu
• Dynamic Range: > 109 dB, 20 Hz to 20 kHz
• Frequency Response: +0.30/-0 dB, 20 Hz to 20 kHz
• Headphone Out: 1/8³ Mini stereo jack

Size

• Height: 1.8″ (45 mm)
• Width: 7.9″ (200 mm)
• Depth: 6.1″ (156 mm)

Weight

• Weight: 2.2 lb. (1 kg)

Construction

• Dual die-cast clamshell design
• Acrylic Lens
• Punch-cut Metal connection panel
• Rubberized footings
• Backlit Graphic LCD Display
