Tascam Sonicview 24 Channel Digital Live Sound Mixer and Integrated Recorder

Spesifikasi Tascam Sonicview 24 Channel Digital Live Sound Mixer and Integrated Recorder

Tascam Sonicview 24 Channel Digital Live Sound Mixer and Integrated Recorder

TASCAM’s Sonicview series represents a bold new era for the company’s long-standing line of digital mixers, boasting a stunning combination of cutting-edge TASCAM technology, ultra-high-definition audio, and an unprecedented level of configuration control. A trio of 7-inch touchscreen interfaces offer a highly customizable experience, boasting TASCAM’s innovative 3-mode VIEW technology to dial in each touchscreen to your preferred workflow needs. Next, an incredible FPGA mixer engine, 96kHz sampling, 54-bit float internal processing, and 32-bit ADC deliver a level of audio quality far beyond your typical digital mixer while the top-of-the-line HDIA mic preamps capture your signal with a studio-quality sheen. Top it all off with full Dante networking functionality, a built-in multichannel USB audio interface, 32-channel SD recording, and a veritable library of bus configuration and processing possibilities, and the Sonicview 24XP is an absolute powerhouse of a digital mixer that’s all but guaranteed to become the centerpiece of your setup.

Choose A Model

Two Sonicview models are available, which differ in frame size and the number of physical inputs, mic preamps, faders and touchscreens. Sonicview 16 offers 16 physical input channels with motorised faders and Tascam’s top-of-the-line Class 1 HDIA microphone preamps, while Sonicview 24 provides 24. Internally, the architecture of the two models is the same: generous 44 input channels (40 mono channels and 2 stereo channels), 22 flex output buses, the L/R main bus and an internal SD/USB stereo audio recorder.

Intuitive Operation at Your Fingertips

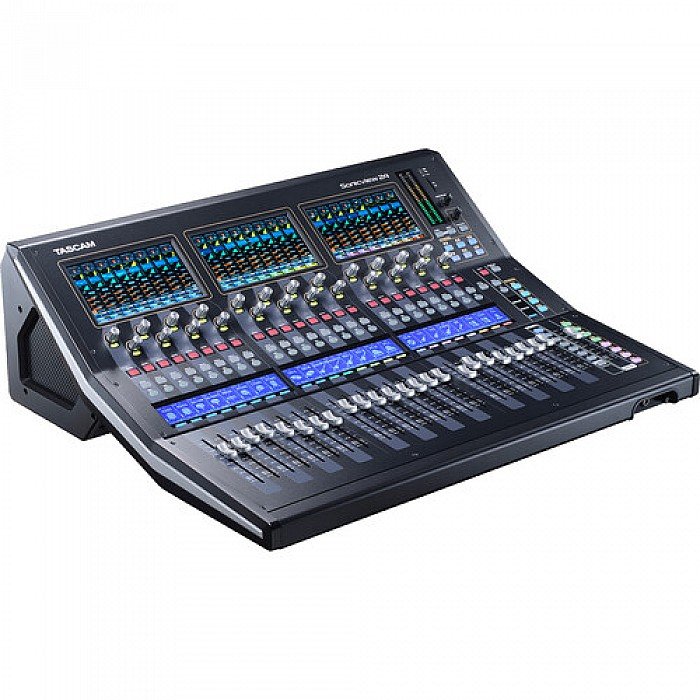

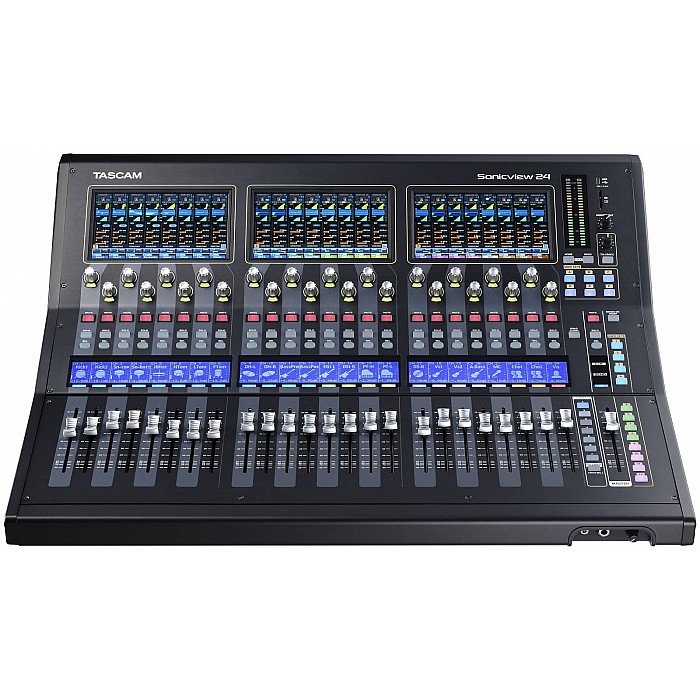

The Tascam Sonicview 24 offers motorised channel faders in three banks of eight, plus a motorised fader for the main stereo bus. Above each bank of channel faders is a colour touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip. Save fader settings and instantly recall them later to continue where you left off. Check levels in a mix or submix at a glance and adjust them during mixdown with either the physical faders or the touchscreen. Your changes will be instantly updated in both.

Input Channels

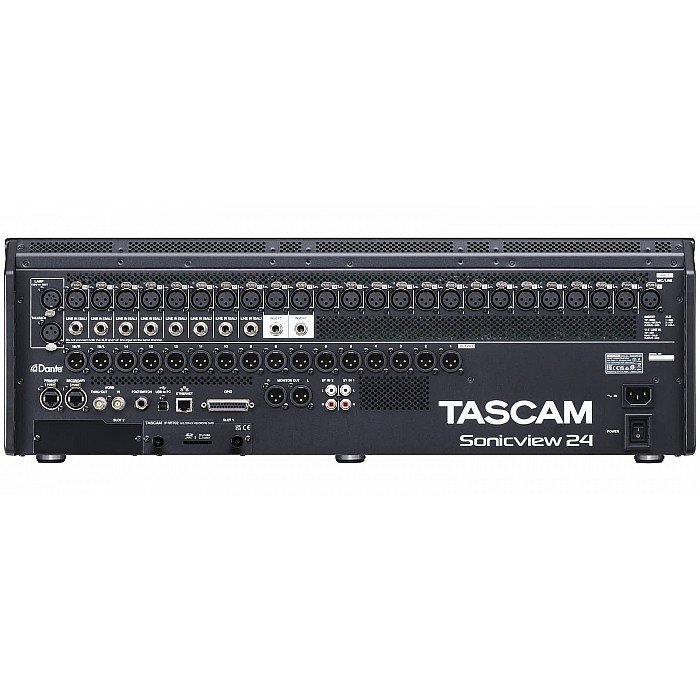

Sonicview 24 offers an array of versatile inputs for recording and mixing. 16 channels with XLR mic/line inputs and 8 channels with both XLR mic inputs and balanced 6.3-mm TRS line inputs allow maximum flexibility. You also get TRS insert points on two channels, two stereo pairs of RCA aux inputs, and an XLR input for a talkback microphone. Dante® audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, city halls, and much more. Tascam Sonicview consoles can serve as the audio center of these systems usimg their built-in 64-in/64-out Dante interface that supports AES67 mode, SMPTE 2110 mode and Dante Domain Manager. Two Dante ports enable redundant streams. Thanks to the combination of Dante and the recording capabilities built into Sonicview, you can mix and record concerts, panel discussions, lectures, worship services and more from any network location, including a remote recording or broadcast studio.

1. Type: Digital Mixer with Recorder
2. Channels: 24 (physical input channels), 44 (total channels)
3. Inputs - Mic Preamps: 24 x XLR
4. Phantom Power: 24 Channels
5. Inputs - Line: 8 x 1/4" TRS, 2 x Dual RCA Stereo
6. Inputs - Other: 1 x 1/4" (footswitch)
7. Outputs - Main: 16 x XLR (main), 2 x XLR (monitor)
8. Busses/Groups: 22 Bus Internal (groups)
9. Inserts: Channels 7-8
10. Talkback: 1 x XLR
11. Data I/O: 2 x etherCON (Dante), 1 x Ethernet (control), 1 x DB-25 (GPIO)
12. Headphones: 1 x 1/4", 1 x 1/8"
13. USB: 1 x Type B
14. Computer Connectivity: USB (32 x 32), Ethernet
15. I/O Expansion Slots: 2 x Card Slots
16. Word Clock: In, Thru/Out
17. Faders: 25 x 100mm motorized
18. A/D Resolution: 32-bit/96kHz
19. EQ Bands: 31-band (main mix bus)
20. Effects: Yes
21. Signal Processing: Parametric EQ, Graphic EQ, Gate, Compressor
22. Features: 32-track SDXC recorder
23. Screen: 3 x 7" touchscreen
24. Storage: SD card slot
25. Software: Tascam Sonicview Control
26. Power Source: Standard IEC AC Cable
27. Height: 8.99"
28. Depth: 21.83"
29. Width: 27.20"
30. Weight: 39.69 lbs.
31. Manufacturer Part Number: SONICVIEW 24XP
