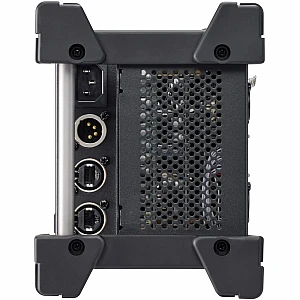

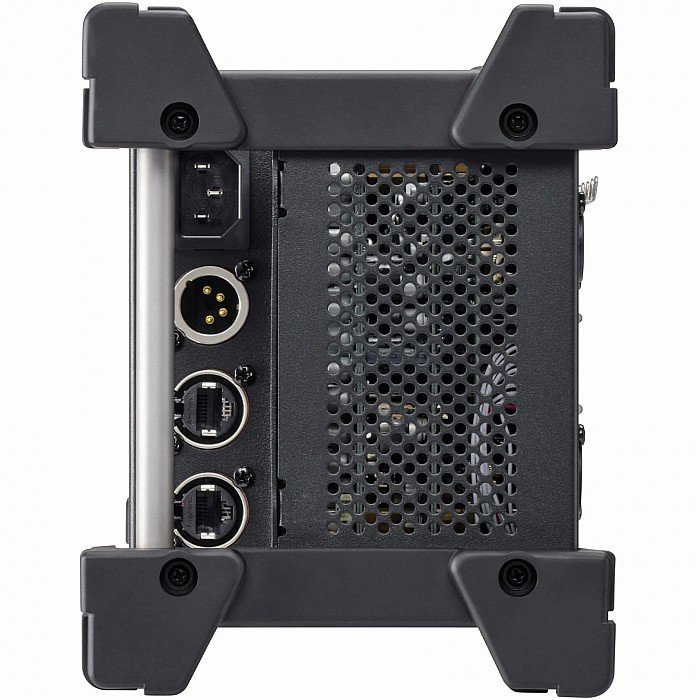

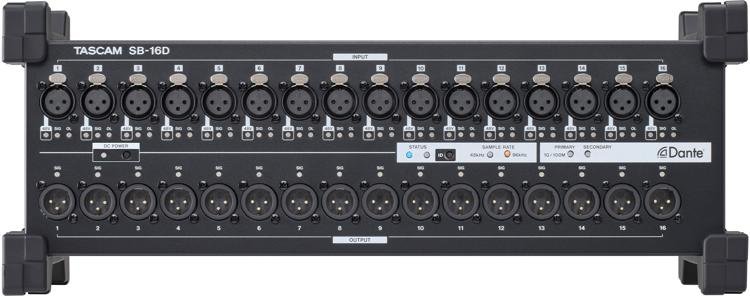

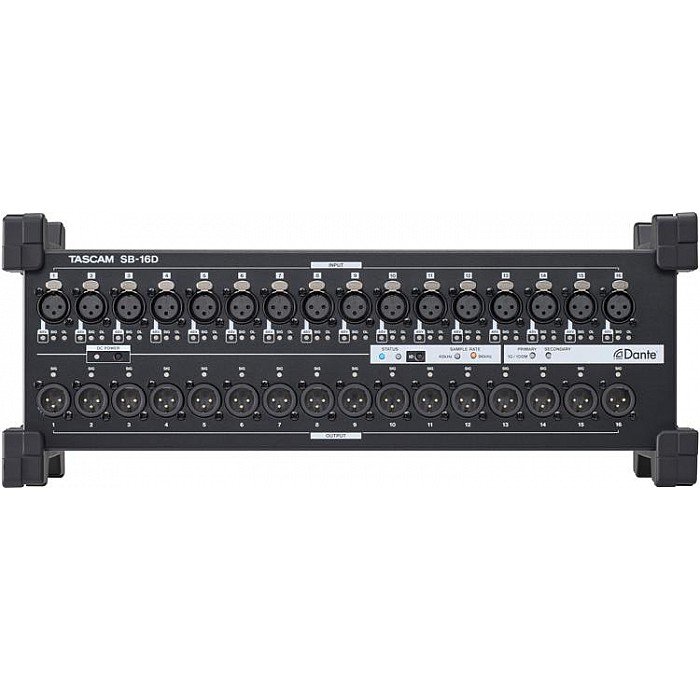

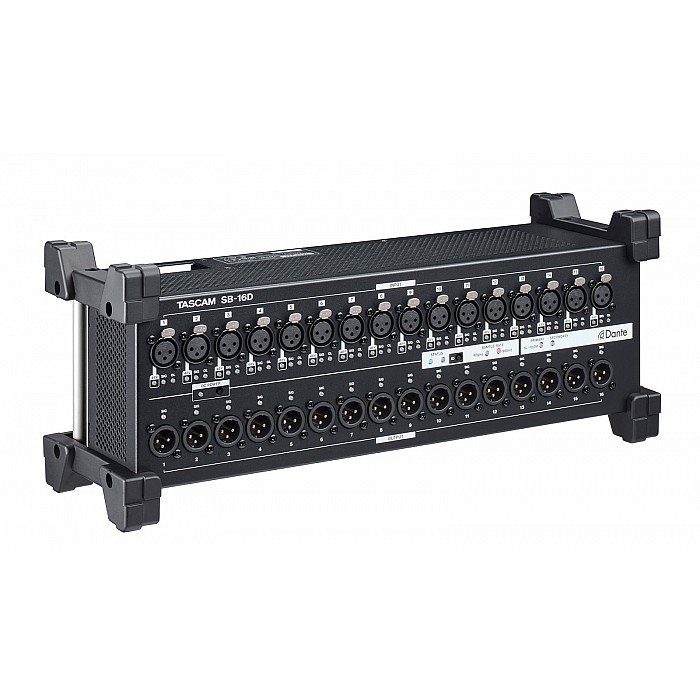

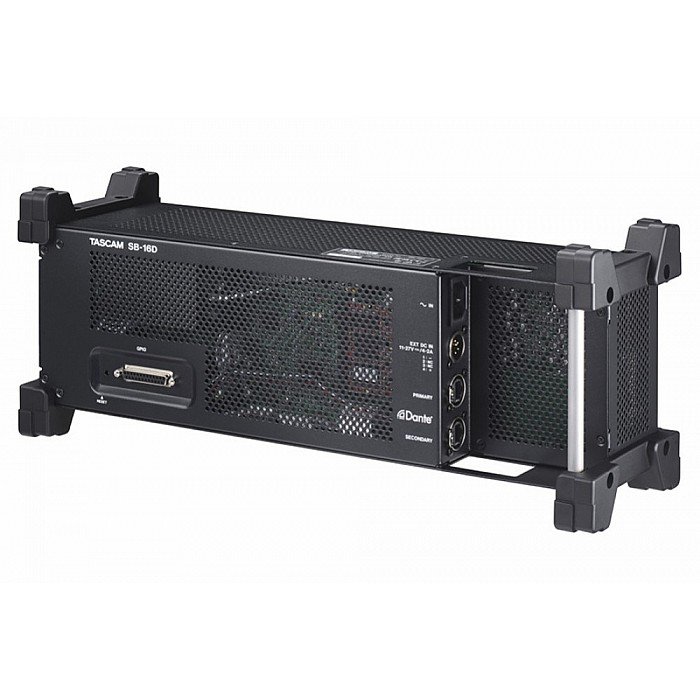

Tascam SB16D Dante Stage Box and Audio Interface

Tascam SB16D 16 Input / 16 Output Dante Stage Box & Audio Interface

Spesifikasi Utama

Type: Dante Stage Box / Audio Interface
Model: SB-16D
Brand: Tascam
Analog Inputs: 16 × XLR Mic/Line Input
Analog Outputs: 16 × XLR Line Output
Mic Preamps: 16 × Class-1 HDIA Remote Mic Preamps
A/D Conversion: 32-bit
Sampling Rate: 48 / 96 kHz
Network Protocol: Dante, AES67, SMPTE ST 2110
Dante Ports: Primary & Secondary EtherCON (Redundant)
GPIO: 8 Input / 8 Output (D-Sub 25-pin)
Power Supply: AC 100–240V + DC Redundant Power Input (Opsional)
Dimensions: ±483 × 132 × 120 mm (Rack Mount)
Weight: ±4,5 kg

Fitur

• 16 XLR mic/line input.
• 16 XLR line output.
• 16 Class-1 HDIA mic preamps.
• Konverter AD/DA 32-bit.
• Dante Primary & Secondary (Redundant).
• Mendukung AES67 dan SMPTE ST 2110.
• Remote control melalui Tascam IO Control.
• Kompatibel dengan Tascam Sonicview.
• GPIO 8 In / 8 Out.
• Redundant DC power input opsional.

Performa

Tascam SB-16D menghasilkan kualitas audio profesional dengan preamp HDIA ber-noise rendah (EIN ≤ -128 dBu), dynamic range hingga 112 dB, serta latency rendah melalui jaringan Dante. Dukungan redundant network dan redundant power membuatnya sangat andal untuk aplikasi live, broadcast, dan instalasi profesional.

Konektivitas

• 16 × XLR Mic/Line Input
• 16 × XLR Line Output
• Dante Primary EtherCON
• Dante Secondary EtherCON
• GPIO 25-pin D-Sub (8 In / 8 Out)
• AC Power Input
• DC Redundant Power Input

Kelengkapan

• 1 Unit Tascam SB-16D
• Power Cable
• Rack Mount Kit
• User Manual
