Spesifikasi Tascam MX-8A 8-Input / 8-Output Matrix Mixer with DSP

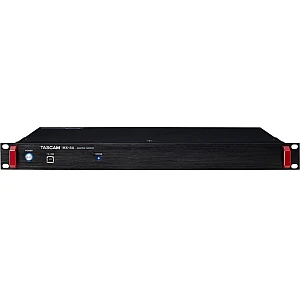

Tascam MX-8A 8-Input / 8-Output Matrix Mixer with DSP

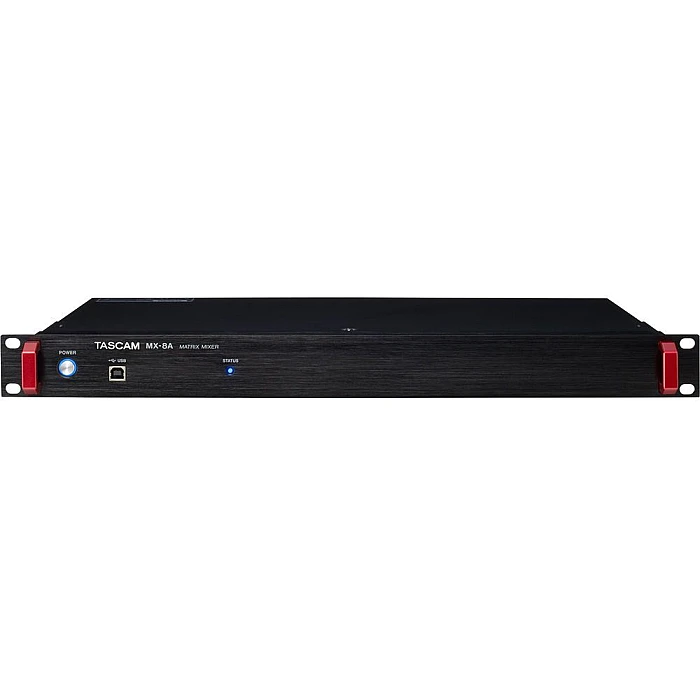

Tascam MX-8A Overview

The MX-8A 8-Input / 8-Output Matrix Mixer with DSP from Tascam features eight mic/line inputs and eight-line outputs on Euroblock connectors as well as integrated DSP for audio optimization in various environments and configurations. It can be used to mix mic and playback-equipment audio signals into eight different zones for easy setup and adjustment by both system integrators and end users, making it suitable for stores, restaurants, or banquet rooms.

The MX-8A's onboard DSP provides a full set of audio processing for mic and line inputs including compression, four-parametric EQ, auto level, ducking, and more. In addition, the output DSP offers 10-band EQ, high-pass filters, low-pass filters, delay, and limiter effects.

Additionally, Tascam's MX Connect remote control software is designed for integrators and provides control over the configuration and settings of the entire system. Tascam's EZ Connect software is designed for end-users and provides control over a variety of settings. The MX-8A 8-Input / 8-Output Matrix Mixer with DSP includes a power cord, sixteen Euroblock plugs, a cable band kit, and a rackmount screw kit.

• Matrix mixer with eight mic/line input channels and eight line output channels

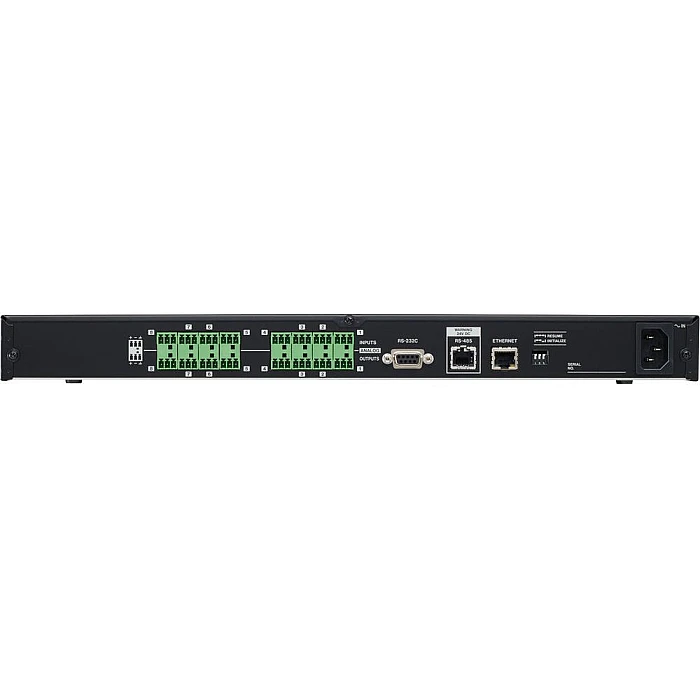

• Euroblock terminals, which are optimal for permanent installations, used for input/output connectors
• Extensive onboard DSP for audio processing according to application and conditions
• Remote control via Ethernet possible
• USB audio interface supports easy recording and background music playback with a computer
• Support for serial control systems possible with built-in RS-232C connector
• RS-485 connector enables connection of a dedicated external controller
• Compact 1U rackmount size
•

Specs

• Format 44.1 kHz / 48 kHz, 16-Bit / 24-Bit
• Connector 4-Pin USB b-Type
• Transfer Rate USB 2.0 High-Speed (480 Mbps)
• Analog In Connector: Euroblock (Balanced) 3.81 mm Pitch
• Minimum Input Level -70 dBu
• Maximum Input Levels Microphone: +26 dBu
• Line: +24 dBu
• Input Impedance: 2.2 kOhms or Higher
• Analog Output Connector: Euroblock (Balanced) 3.81 mm Pitch
• Nominal Output Level

1. +4dBu (When Ref.Level Set to Other Than -9 dBFS)
2. +6dBu (When Ref.Level Set to -9 dBFS)

• Power AC 100 to 240 V, 50/60 Hz
• Power Consumption 21 W
• Operating Temperature Range 32 to 104°F / 0 to 40°C
•
