Tascam AE4D AES/EBU Input/Output Dante Converter with BuiltIn DSP Mixer

The AE-4D AES/EBU Input/Output Dante Converter with Built-In DSP Mixer from Tascam can be used to convert 4-channel AES/EBU input signals into 4-channel Dante output signals, or the other way around for pro-audio applications.

The AE-4D AES/EBU Input/Output Dante Converter features Level control and is compatible with a Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and easy access to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.

Features

• 4 x AES/EBU inputs/outputs
• 4 x Dante inputs/outputs
• Supports PoE (Power over Ethernet)
• Up to 24-bit/96 kHz sample rate
• Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
• Compatible with Dante Domain Manager and Dante AES67 mode
• Flexible scene preset function allows to work in different area situations (up to 50 presets)
• Two types of user-control software available for Windows/Mac/iOS/Android devices:
• Remote control via Dante
• Half-rack mountable size

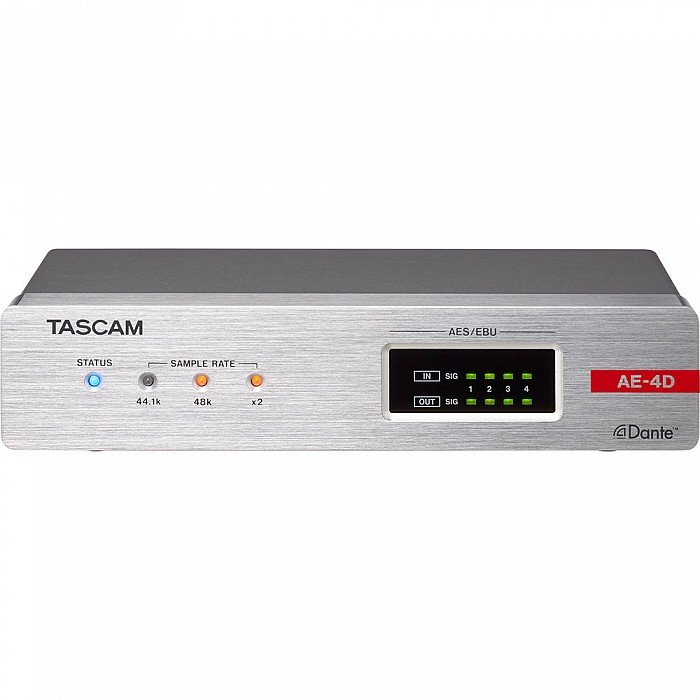

• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor digital input/output signals
• Configurable reference level (via remote control only)
• Surface-mount adapters for installation under desks included

1. For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
2. For end-users: simple app design for only the necessary functions such as area-volume settings, etc.​
3.

Specs

1. 16/24-Bit, 44.1/48 kHz; 4 Channels
2. 16/24-Bit, 88.2/96 kHz; 2 Channels (Double Speed)
3.

• Connector RJ-45
• Transmission Protocol Dante
• Gigabit Ethernet 1000 BASE-T (IEEE 802.3ab)
• Cable Category 5e or Faster STP Cables
•

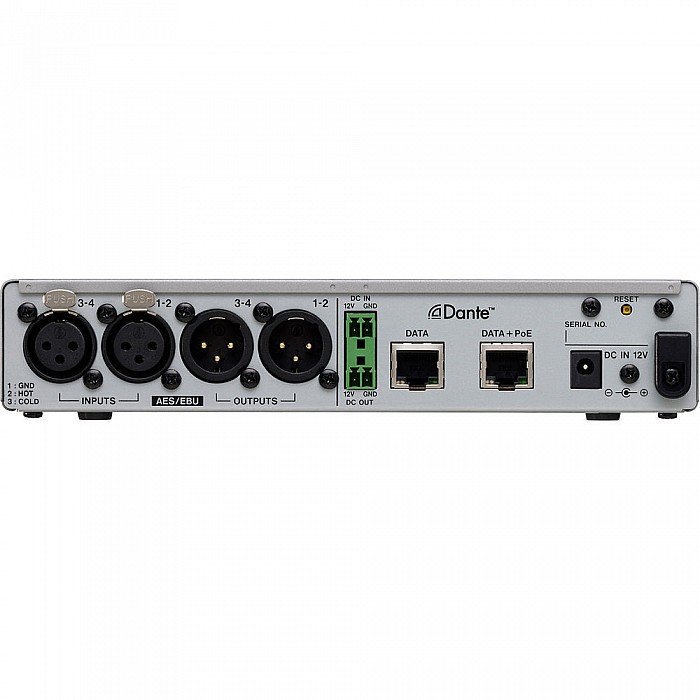

• Connector 2 x 3-Pin XLR (Channels 1, 2, 3, and 4) AES/EBU
• Input Impedance 110 Ohms
• Format AES3-2003/IEC60958-4 (AES/EBU)
• Sampling Frequencies 32 to 192 kHz (Sampling Rate Converter is Always on)
•

• Connector 2 x 3-Pin XLR Male (Channels 1, 2, 3, and 4) AES/EBU
• Output Impedance 110 Ohms
• Format AES3-2003/IEC60958-4 (AES/EBU)
• Supported Sampling Rate 44.1, 48, 88.2, and 96 kHz
•

• Power PoE class 0
• Tascam PS-P1220E AC Adapter (sold separately)
• Power Consumption 3 W
• Operating Temperature 32 to 104°F / 0 to 40°C
• Dimensions (W x H x D) 8.4 x 1.7 x 5.4" / 21.4 x 4.4 x 13.6 cm
• Weight 28 oz / 795 g
•

• Package Weight 2.71 lb
• Box Dimensions (LxWxH) 10.5 x 8.2 x 4.1"
