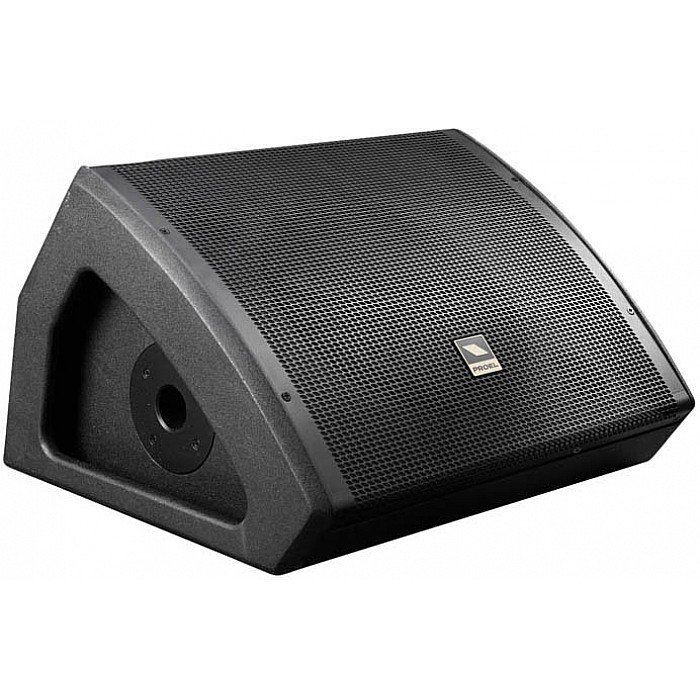

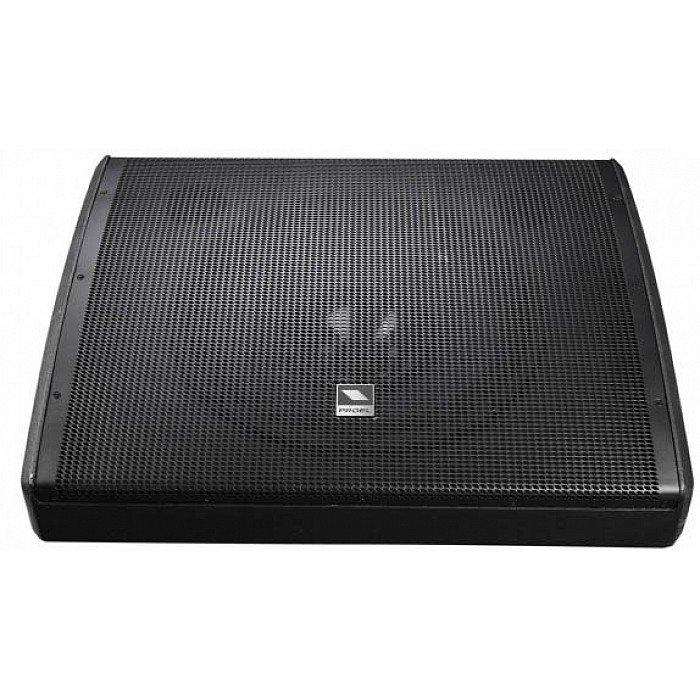

Proel Proel WD15A 15 Inch 600W Active Speaker Monitor Proel WD15A 15 Inch 600W Active Speaker Monitor

Spesifikasi Proel WD15A 15 Inch 600W Active Speaker Monitor

Proel WD15A 15 Inch 600W Active Speaker Monitor

The coaxial transducers, designed under PROEL specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position. The lightweight CLASS D amplifier modules with SMPS, coupled to a sophisticated analog processing, provide an impressive sound pressure level, with an extremely detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two tailored EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH).


The low-profile, stylish and unobtrusive cabinet, with recessed handles and scratch-resistant polyurethane painting, fits perfectly on any stage. WD15A, with its full extension and powerful and deep response at the low frequencies, is the ideal monitor for bass and drums players. The horn-loaded HF section and the powerful amplifier make it the perfect solution for monitoring also in very large stage.

Features

  • 1” compression driver with 1.35” VC on a waveguide
  • 15” woofer with 3” VC
  • 900 W total peak power
  • 50 W continuous class AB amplifier for the high frequencies
  • 350 W continuous class D amplifier for the low frequencies
  • Switch Mode Power Supply (SMPS) - Dual LIMITER circuit
  • 2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use
  • SPL MAX: 126dB
  • Frequency response: 45 Hz - 20 kHz
  • Lightweight plywood cabinet with black anti-scratch polyurethane paint
  • Reinforced metal grille

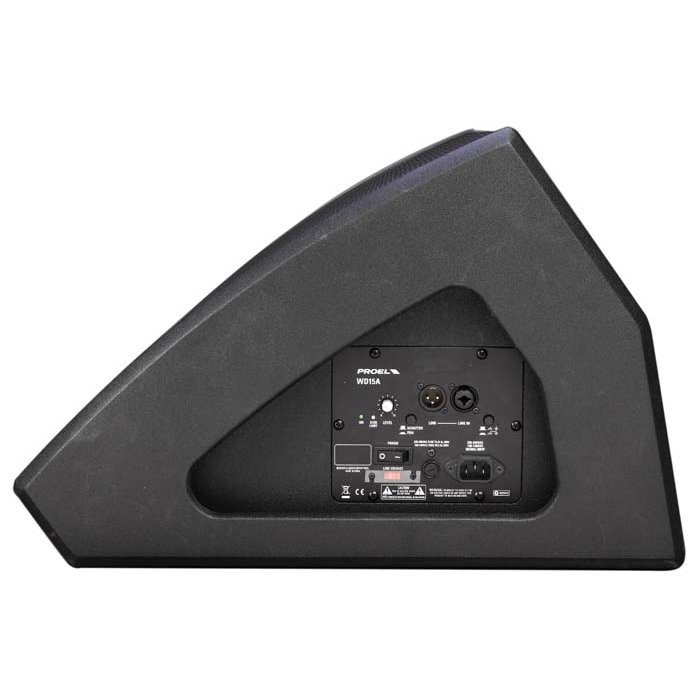

  • Recessed connection panel for added protection
  • Two recessed handles for easy transport
  • Pole adapter

SPECIFICATIONS

System type 2-way coaxial vented
Low Frequency Device 15” woofer with 3"VC
High Frequency Device 1” compression driver with 1.35"VC
Angular Coverage 60°
Frequency Response 45 Hz - 20 kHz
Max SPL at 1mt (peak) 126 dB
Amplifier Continuous Power HF: 50 W CLASS AB
  • LF: 400W CLASS D with SMPS
Input Impedance 30 kohm balanced / 15 kohm unbalanced
Input sensitivity 0 dBu
Controls LEVEL, PRESET selector (MONITOR, FOH), GND lift
Connectors INPUT: COMBO (XLR-F/JACK) - LINK: XLR-M
Power Supply 230 VAC or 120 VAC 50/60 Hz
Maximum Consumption 575 W
Rated Consumption* 300 W
Construction Plywood with black anti-scratch polyurethane paint
Pole adapter 1 x side
Handles 2 x sides
Monitor Taper 36°
Weight 19.5 kg (43 lb)
Dimensions (W x H x D) 610x365x545 mm
Rp.8.500.000,00 Tersedia

Proel WD15A 15 Inch 600W Active Speaker Monitor

Merek: Proel
Kode Produk: WD-15A
Ketersediaan: Tersedia
Harga:
Rp.8.500.000,00
