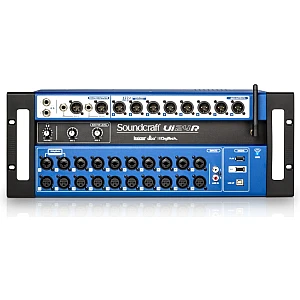

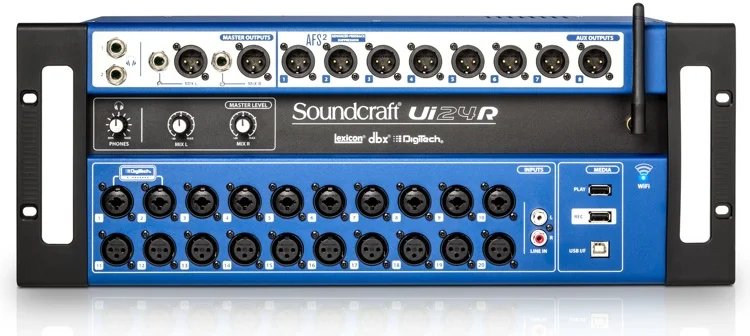

Soundcraft Ui24R Digital Mixer

Soundcraft Ui24R Digital Mixer

Spesifikasi Utama

Type: Digital Rackmount Mixer / USB Audio Interface / Multitrack Recorder
Model: Ui24R
Brand: Soundcraft
Input Channels: 24 Channels (20 Mic/Line + 2 Stereo Digital)
Mic Preamps: 20 Studer Microphone Preamps
USB Audio Interface: 32×32 USB Audio Interface
Recording: 24-Track USB Multitrack Recorder
Processing: Lexicon Effects, dbx Dynamics & AFS2, DigiTech Amp Modeling
EQ: 4-Band Parametric EQ + HPF, Gate, Compressor, De-Esser
Output EQ: 31-Band Graphic EQ + dbx AFS2
Wi-Fi: Built-in Dual-Band Wi-Fi
Remote Control: Web Browser (Windows, macOS, Linux, iOS, Android)
Display: Browser-Based Interface
Rack Size: 4U Rackmount
Dimensions: 483 × 177 × 266 mm
Weight: ±5.1 kg

Fitur

• Digital mixer rackmount 24-channel.
• 20 Studer microphone preamps.
• USB Audio Interface 32×32.
• Rekam multitrack langsung ke USB dan komputer secara bersamaan.
• Built-in Dual-Band Wi-Fi.
• Kontrol hingga 10 perangkat secara bersamaan melalui browser.
• Lexicon Reverb, Delay & Chorus.
• dbx Compressor dan AFS2 Feedback Suppression.
• DigiTech Guitar Amp Modeling.
• 4-Band Parametric EQ pada setiap input.
• 31-Band Graphic EQ pada seluruh output.

Performa

Soundcraft Ui24R menghasilkan kualitas audio profesional dengan preamp Studer yang bersih, pemrosesan Lexicon dan dbx berkualitas tinggi, serta kemampuan merekam multitrack langsung ke USB drive maupun komputer secara simultan. Sangat cocok untuk live performance, recording, broadcast, dan instalasi audio profesional.

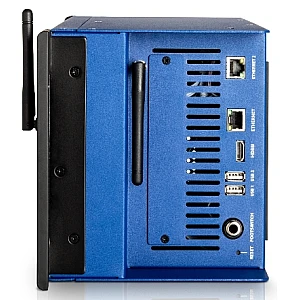

Konektivitas

• 10 × XLR/TRS Combo Input
• 10 × XLR Mic Input
• 2 × Line Input
• USB Type-B (32×32 Audio Interface)
• 2 × USB Type-A (Recording/Playback)
• HDMI Output
• Ethernet (RJ45)
• Built-in Dual-Band Wi-Fi
• XLR Main Output
• Aux Outputs
• Headphone Output

Kelengkapan

• 1 Unit Soundcraft Ui24R Digital Mixer
• Power Cable
• Rack Mount Kit
• User Manual
