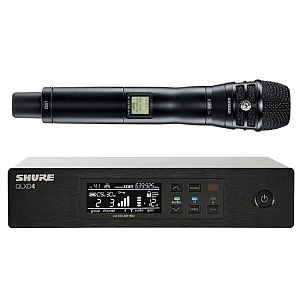

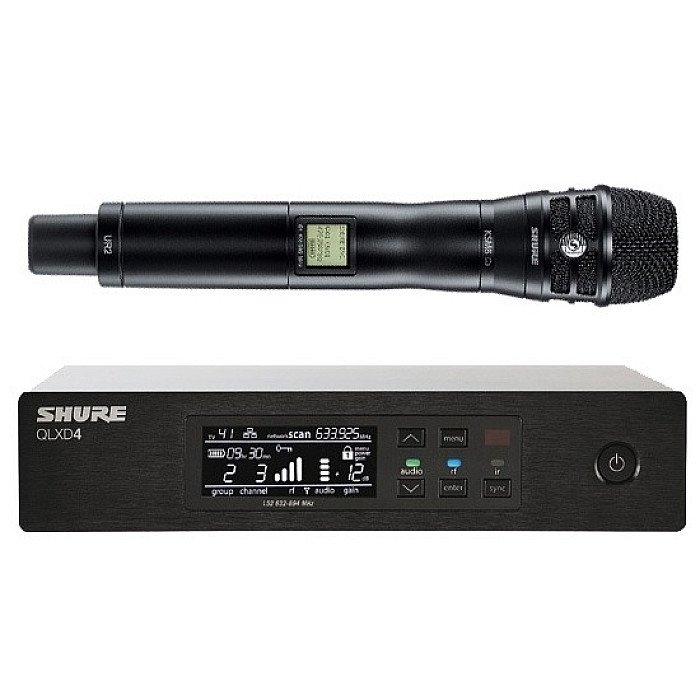

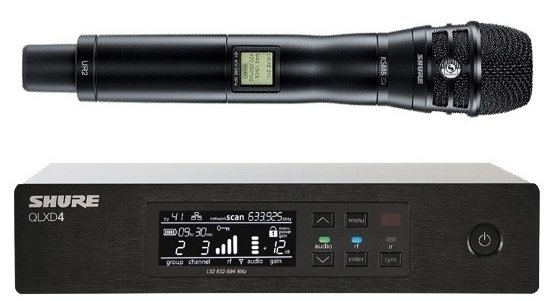

Shure ULXD24/K8B Handheld Wireless System

Spesifikasi Shure ULXD24/K8B Handheld Wireless System

Shure ULXD24/K8B Handheld Wireless System

Wireless frequency band: K51, TV channels 38 - 45 (606 - 670 MHz) NL standard band. Also available in other frequencies.

ULXD24/K8B Specifications

• Set Type: Vocal
• Amount of Handhelds: 1
• Maximum number of compatible systems per frequency band: 70

ULXD4 Specifications

• Weight: 913 g
• Height x Width x Depth: 197.0 × 171.0 × 42.0 mm
• Transmission: Digital in UHF TV band
• Type of Power Supply: External
• Receiver Housings: Metal
• Active Antenna Possible: Yes
• Bias via BNC: Yes
• Encryption: 256 Bit AES
• High Density Mode: Yes
• Interference Detection: Yes
• Remote Control: Yes
• DANTE Audio Network Interface: No
• Scan Features: Channel Scan, Group Scan, Spectrum Scan
• Sync Features: IR Sync
• Detachable Antennas: Yes
• Logic: No
• Cascade: No
• Rack Hardware: Included Rack mounts brackets
• Receiver Displays: Multi-function LCD
• Receiver type: Single
• Included antenna: External 1/2 wave
• Battery Status: Leveled battery life indication, HH:MM (Hours and minutes)
• Line Mic Switch: Yes
• Image Rejection: 70 dB, typical
• RF Sensitivity: -106 dBm, for 12dB SINAD, typical
• Phantom Power Protection: Yes
• Spurious Rejection: 80 dB, typical
• Antenna Input Impedance: 50 Ω

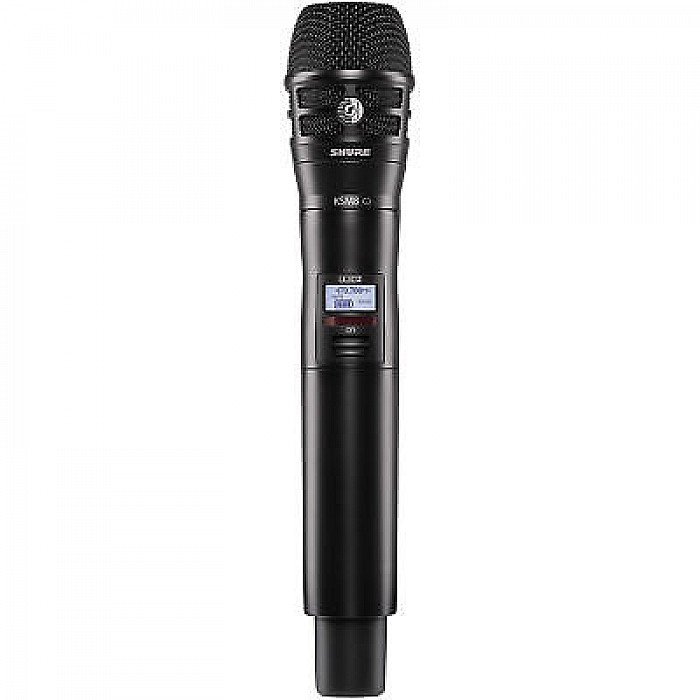

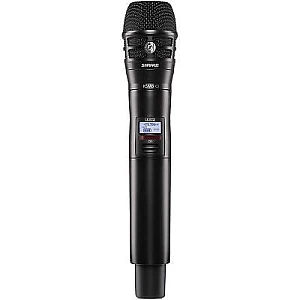

ULXD2/KSM8 Specifications

• Weight: 340 g
• Height x Width x Depth: 256.0 × 51.0 × 51.0 mm
• Battery life lithium: 11 h
• Battery life alkaline: 11 h
• Form Factor: Handheld
• Operating Range (up to): 100 m (Under typical conditions)
• Transmitter housings: Metal
• Audio Mute: Yes
• Detachable Antennas: No
• Switchable RF power: Yes
• Batteries: AA, Shure Lithium-Ion battery
• Battery Status: HH:MM (Hours and minutes)
• Encryption: 256 Bit AES
• Charger Options: Docking Charger
• Frequency Diversity: No
• Functionality: Transmitter
• High Density Mode: Yes
• Interchangeable Handheld Capsule: Interchangeable
• Transmitter displays: Backlit LCD
