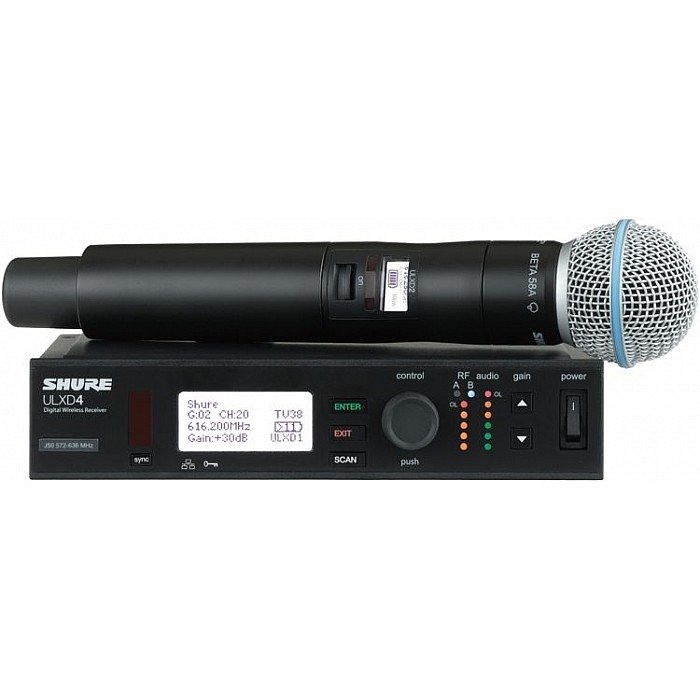

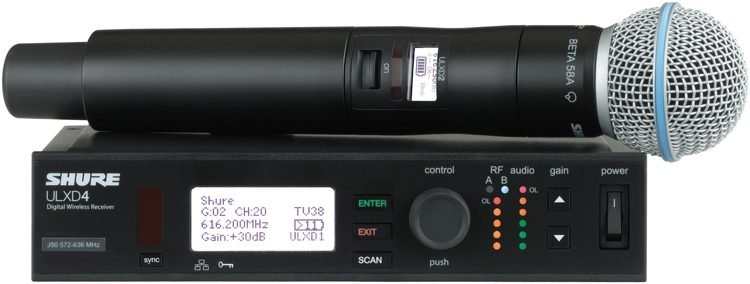

Shure ULXD24/BETA58 Handheld Wireless System

Wireless frequency band: K51, TV channels 38 - 45 (606 - 670 MHz) NL standard band. Also available in other frequencies.

Technical specifications

• Transmitter Type: Handheld
• Dimensions: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
• RF Output Power: 1 mW, 10 mW, 20 mW
• Battery, endurance: Shure SB900 Rechargeable Li-Ion: >12 hours or AA batteries
• Weight: 340 g (12.0 oz.), without batteries

ULXD4 Specifications

• Weight: 913 g
• Height x Width x Depth: 197.0 × 171.0 × 42.0 mm
• Transmission: Digital in UHF TV band
• Type of Power Supply: External
• Receiver Housings: Metal
• Active Antenna Possible: Yes
• Bias via BNC: Yes
• Encryption: 256 Bit AES
• High Density Mode: Yes
• Interference Detection: Yes
• Remote Control: Yes
• DANTE Audio Network Interface: No
• Scan Features: Channel Scan, Group Scan, Spectrum Scan
• Sync Features: IR Sync
• Detachable Antennas: Yes
• Logic: No
• Cascade: No
• Rack Hardware: Included Rack mounts brackets
• Receiver Displays: Multi-function LCD
• Receiver type: Single
• Included antenna: External 1/2 wave
• Battery Status: Leveled battery life indication, HH:MM (Hours and minutes)
• Line Mic Switch: Yes
• Image Rejection: 70 dB, typical
• RF Sensitivity: -106 dBm, for 12dB SINAD, typical
• Phantom Power Protection: Yes
• Spurious Rejection: 80 dB, typical
• Antenna Input Impedance: 50 Ω
