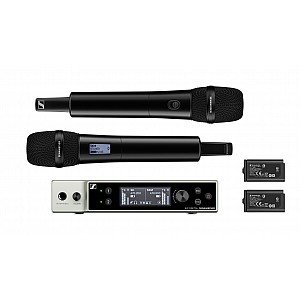

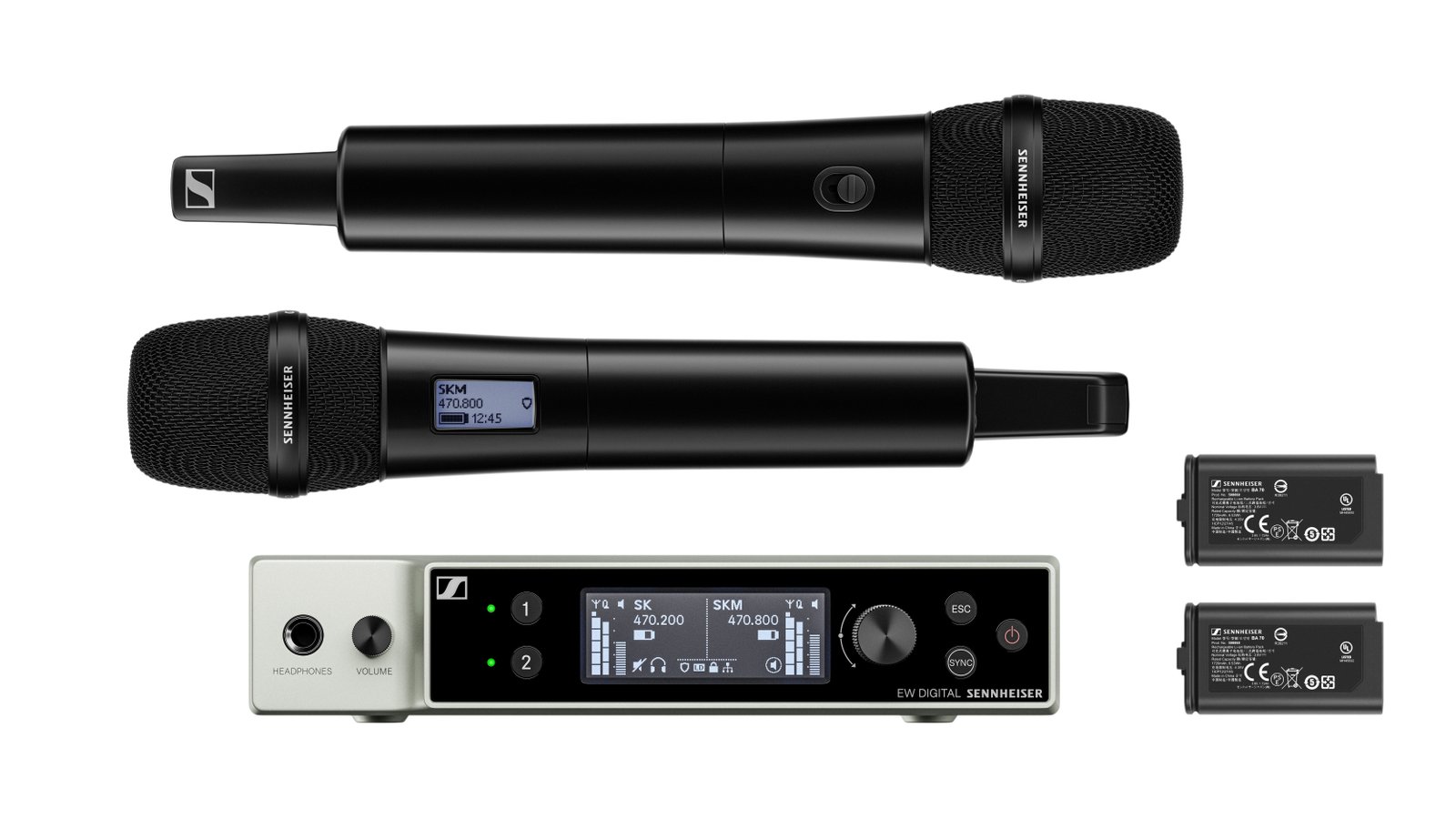

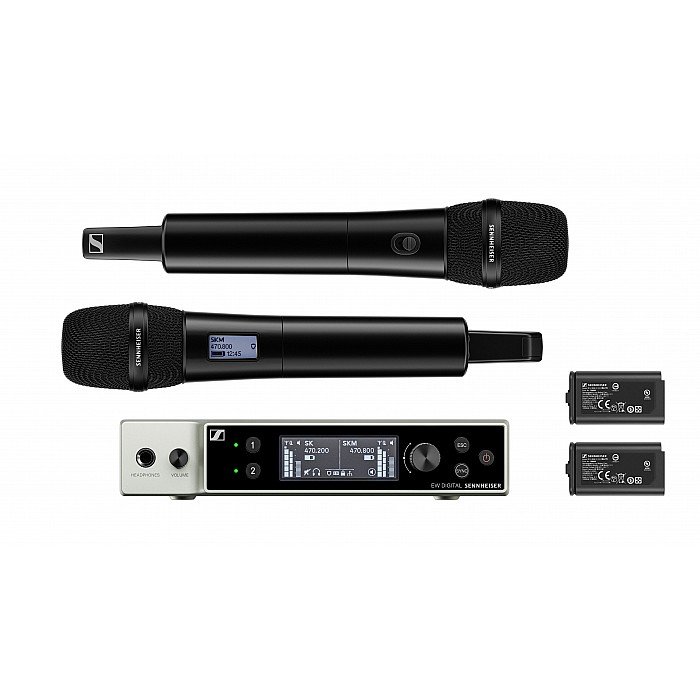

Sennheiser EW DX MKE 2 835S Set Dual Channel Digital Combo Wireless System

Spesifikasi Sennheiser EW DX MKE 2 835S Set Dual Channel Digital Combo Wireless System

Sennheiser EW DX MKE 2 835S Set Dual Channel Digital Combo Wireless System

Sennheiser EW-DX MKE 2-835-S SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver, a bodypack transmitter with subminiature MKE 2 omnidirectional lavalier mic, and a handheld transmitter/mic with mute switch and MMD 835 cardioid capsule. With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 87 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.

Rock-Solid Wireless Audio with Professional Digital Sound & More Mic Channels
The UHF transmission greatly enhances range (up to 330') and the wide 87 MHz bandwidth gives you the ability to find a clean channel from 3480 available frequencies.
Intelligent Switching Diversity compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information.
The equidistant tuning grid removes the need for frequency coordination and allows you to add additional transmitters and receivers for up to 146 mic channels simultaneously.
For complex systems requiring even more mics, engage the Link Density mode for up to 293 channels on the same system.

Bodypack Transmitter with Mute Switch, e-Ink Display, and MKE 2 Omni Lav Mic
The rugged, all-metal compact bodypack transmitter is equipped with a lockable mute button along with function buttons that allow you to control all the transmitter's settings directly from the device.
The sweat-resistant, subminiature MKE 2 lavalier microphone offers a pristine, broadcast-quality sound and is easy to conceal. It features a forgiving omnidirectional pickup pattern that captures sound equally well in every direction, for a consistent voice level, even when moving your head. The lav plugs into the locking 3.5mm connector on the bodypack transmitter, ensuring that it doesn't detach at a critical moment.
The persistent e-Ink display helps you quickly name and identify the transmitters and allows you to see parameters, even when the unit is powered off.
The transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).

Handheld Transmitter with Mute Switch, MMD 835 Capsule, and e-Ink Display
The rugged, all-metal handheld transmitter is also equipped with a lockable mute switch along with function buttons that allow you to control all the transmitter's settings directly from the mic.
The MMD 835 dynamic capsule features a cardioid polar pattern that helps minimize background noise and feedback. The interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid.
The persistent e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.
The handheld transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).

In addition to the handheld transmitter with MMD 835 capsule and bodypack transmitter with MKE 2 lav included with this set, Sennheiser offers a number of separately additional transmitter and mic options for the EW-DX system as your needs evolve.

• The ME 4 cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
• The ME 3 cardioid headset mic provides enhanced speech clarity for lectures and presentations.
• The CI 1 instrument cable lets you connect the bodypack transmitter to a guitar, bass, or keyboard.
• Capsules for the handheld transmitter include the MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.
• For conferences and meetings, the EW-DX TS is a tabletop transmitter that provides a stable base for gooseneck microphones and is available with 3-pin or 5-pin XLR inputs.
• To maximize the reliability of the system, consider upgrading the included antennas.
• The rear-mounted, 1/4-wave detachable antennas can be upgraded to longer, 1/2-wave dipole antennas (available separately) for added range and reliability; users can also choose an ADA UHF Active Antenna or the AWM Wallmount Antenna as well.
• For setups with multiple receivers, the EW-D ASA Splitter allows you to split and distribute a dual-antenna signal across 4 receivers for clearer reception without the intermodulation problems that can occur when multiple antennas are used.
•

1. Wireless Technology Digital UHF
2. Number of RF Channel Frequencies 3480
3. Included Transmitters 1 x Bodypack
4. 1 x Handheld
5. Diversity Intelligent Switching Diversity
6. RF Frequency Band R1-9: 520 to 607.8 MHz
7. RF Bandwidth 87 MHz
8. Frequency Step Size 25 kHz
9. RF Channel Scanning Auto-Scan
10. Max Operating Range 328.1' / 100 m (Line of Sight)
11. Max Transmitters per Band 293
12. Built-In Recorder No
13. Bluetooth 5.1 LE
14. Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)
15. Sample Rate/Resolution 24-Bit
16. Latency 1.9 ms
17. Dynamic Range 134 dB
18. Encryption AES 256

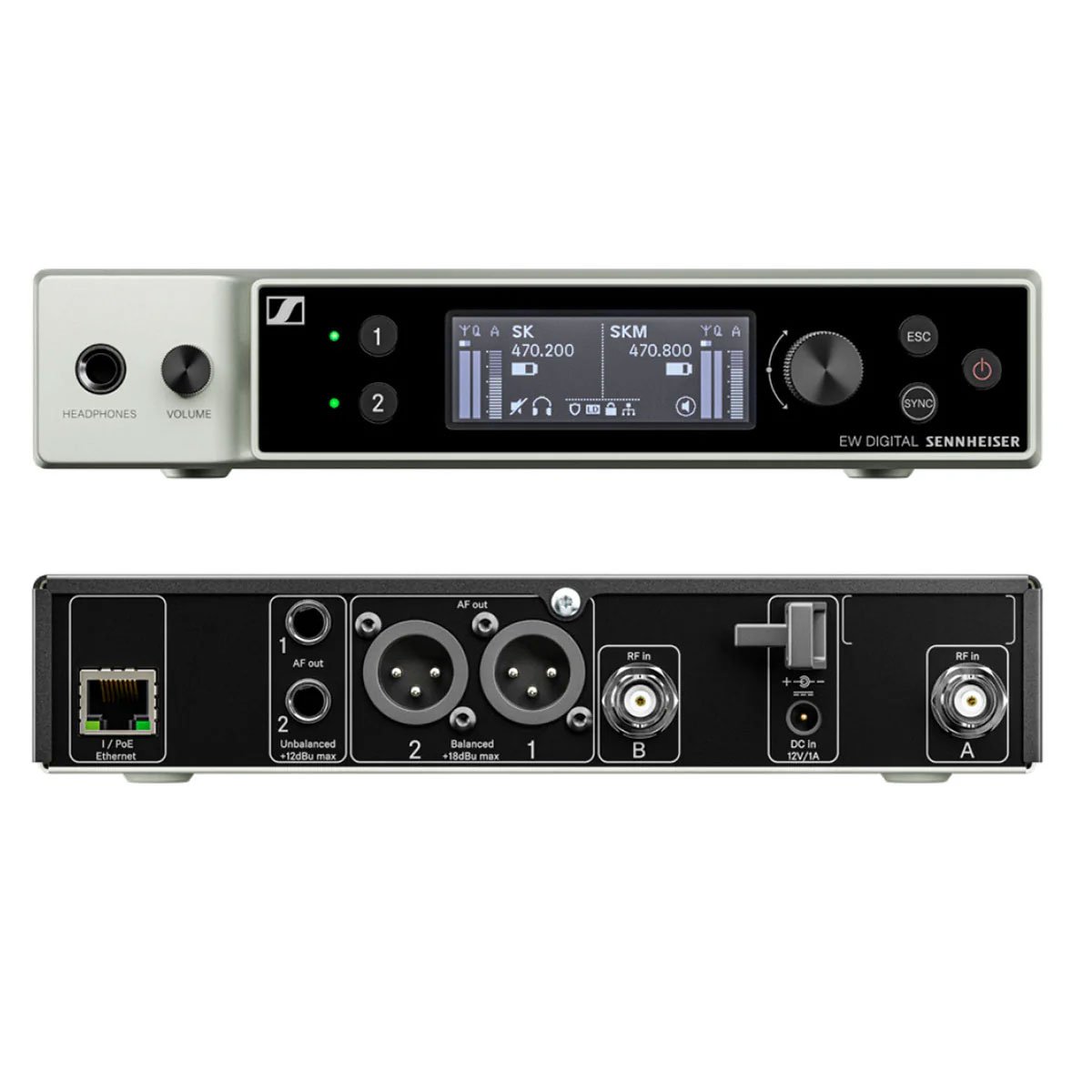

• Receiver Type Tabletop / Rackmount
• Mounting Options Rackmount (with Included Hardware)
• Rackmount Size 1 RU (1/2 Rack)
• Antenna 2 x 1/4 Wave Rod, BNC (Rear-Mount)
• Number of Audio Channels 2
• Audio I/O 2 x XLR 3-Pin Male Balanced Output
• 2 x 1/4" TS Female Unbalanced Output
• Audio Output Level +18 dBu (Max)
• +12 dBu (Max)
• Frequency Response 20 Hz to 20 kHz +3 dB
• Network I/O 1 x RJ45
• Word Clock I/O None
• USB/Lightning Connectivity None
• Standalone Audio Interface Capable No
• RF Output Power 10 mW (EIRP)
• Power Requirements AC/DC Power Adapter, PoE
• AC/DC Power Adapter 11 to 13 VDC (Included)
• DC Input Power 12 VDC
• AC Input Power 100 to 240 VAC, 50 / 60 Hz
• Display & Indicators 1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
• Housing Metal
• Operating Temperature 14 to 131°F / -10 to 55°C
• Operating Humidity 5 to 95%
• Dimensions 8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm
• Weight 2.2 lb / 1 kg (without Antenna)

1. Transmitter Type Handheld
2. RF Output Power 10 mW (ERP)
3. 10 mW (EIRP)
4. Audio I/O None
5. Included Cable Connector None
6. Muting Mute Switch
7. Audio Input Level 2 to 4.35 V
8. Auto-Level Control No
9. Frequency Response 20 Hz to 20 kHz -3 dB
10. Sync Method Bluetooth
11. Antenna 1 x Internal (Handheld)
12. Power Requirements Battery
13. Battery Type 1 x Sennheiser Battery Pack (Included)
14. 2 x AA (Not Included)
15. Approx. Battery Life 12 Hours (Sennheiser Battery Pack)
16. 8 Hours (Alkaline)
17. Display & Indicators 1 x Backlit LCD (Battery Status, Mute)
18. Housing Metal
19. Operating Temperature 14 to 131°F / -10 to 55°C
20. Operating Humidity 5 to 95%
21. Dimensions 2 x 10.6" / 50 x 268 mm
22. Weight 10.7 oz / 304 g

• Microphone Type Handheld Capsule
• Color Black
• Sound Field Mono
• Capsule Dynamic
• Polar Pattern Cardioid
• Maximum SPL 154 dB SPL
• Sensitivity 2.1 mV/Pa
• Transmitter 2
• Transmitter Type Bodypack
• RF Output Power 10 mW (ERP)
• 10 mW (EIRP)
• Audio I/O 1 x 1/8" / 3.5 mm TRS Female Input (Lockable)
• Muting Mute Switch
• Audio Input Level 2 to 4.35 V
• Auto-Level Control No
• Frequency Response 20 Hz to 20 kHz
• Sync Method Bluetooth
• Antenna 1 x Flexible Whip, Fixed (Beltpack)
• Power Requirements Battery
• Battery Type 1 x Sennheiser Battery Pack (Included)
• 2 x AA (Not Included)
• Approx. Battery Life 12 Hours (Sennheiser Battery Pack)
• 8 Hours (Alkaline)
• Display & Indicators 1 x Backlit LCD (Battery Status, Mute)
• Housing Metal
• Operating Temperature 14 to 131°F / -10 to 55°C
• Operating Humidity 5 to 95%
• Dimensions 2.5 x 3.3 x 0.8" / 63 x 85 x 20 mm
• Weight 4.2 oz / 120 g (without Batteries)
