Spesifikasi Sennheiser EW 100 ENG G4 Camera Broadcast Wireless Microphone System

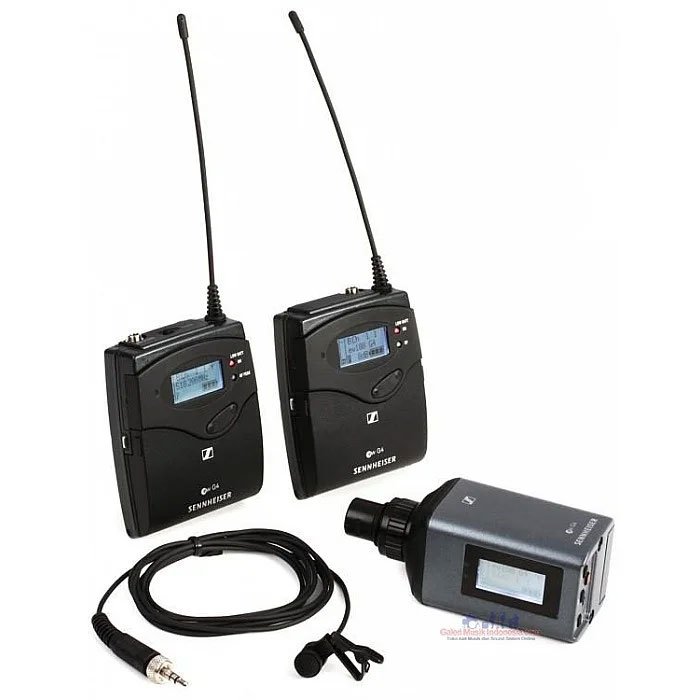

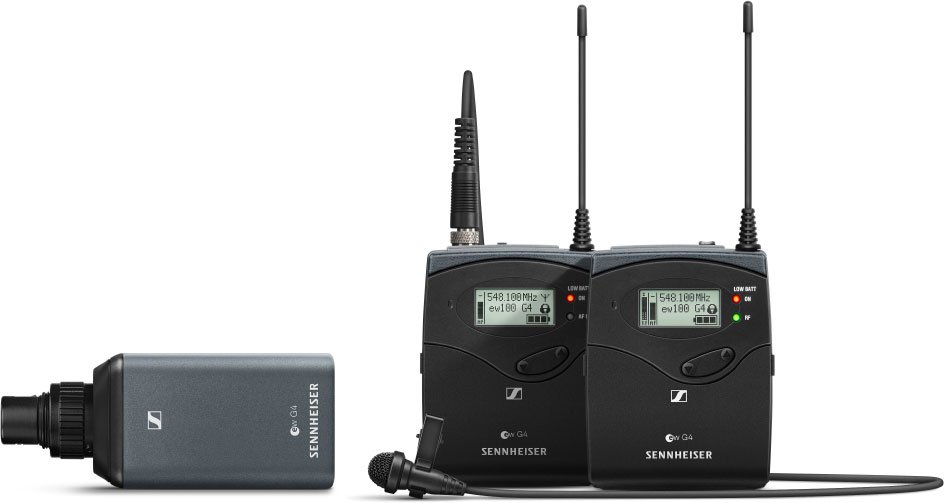

Sennheiser EW 100 ENG G4 Camera Broadcast Wireless Microphone System

Features:

• Compact system makes portable audio recording easy
• Includes a discreet ME 2-II omni lavalier microphone and a bodypack transmitter
• Also includes a plug-on transmitter to send audio from any XLR-equipped device
• Super-compact EK 100 G4 diversity receiver can attach to a camera's shoe mount
• You can sync the transmitters to the receiver with the simple push of a button
• Benefit from a transmission range of up to 330 feet and up to 8 hours of operation time
• Link up to 12 receivers for simultaneous easy setup
• Backwards-compatible with previous evolution G1, G2, and G3 systems

Specifications:

• Sturdy metal transmitter and receiver housing
• 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• Adaptive-diversity reception for high reception quality
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Increased range for audio sensitivity
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display (transmitter and receiver)
• Auto-Lock function avoids accidental changing of settings
• HDX compander for clear sound
• Transmitter and receiver feature battery indication in 4 steps
• Programmable Mute function
• Contacts for recharging BA 2015 accupack directly in SK 100 G4 or EK 100 G4
• Wide range of accessories adapts the system to any requirement

Includes:

• 1 EK 100 G4 diversity receiver
• 1 SK 100 G4 bodypack transmitter
• 1 ME 2-II omnidirectional lavalier microphone
• 1 SKP 100 G4 plug-on transmitter
• 1 CL 1 jack cable
• 1 CL 100 XLR cable
• 1 CA 2 camera adapter
• 6 AA batteries
• Operating instructions

Tech Specs

• System: Simultaneous Channels:Up to 12
• System: Analog/Digital:Analog
• System: Frequency Range:516-558 MHz
• System: Operating Range:330 ft. Line-of-sight
• System: Microphone Included:Yes
• Microphone: Type:Condenser
• Microphone: Polar Pattern:Omnidirectional
• Microphone: Max SPL:130dB SPL
• Microphone: Connector:1/8", XLR
• Microphone: Color:Black
• Microphone: Frequency Response:50Hz-18kHz
• Microphone: Cable Length:5.2 ft.
• Microphone: Self Noise:36dB
• Transmitter: Form Factor:SK 100: Bodypack; SKP 100: Handheld Mic Attachment
• Transmitter: Mute Feature:SK 100: Yes; SKP 100: Yes
• Transmitter: Battery Type:SK 100: 2 x AA; SKP 100: 2 x AA
• Transmitter: Battery Life:SK 100: 8 hours; SKP 100: 8 hours
• Transmitter: Connector:SK 100: 1/8"; SKP 100: XLR
• Transmitter: Dimensions:SK 100: 3.32" x 2.57" x 1.22"; SKP 100: 4.07" x 1.67"
• Transmitter: Weight:SK 100: 0.35 lbs.; SKP 100: 0.42 lbs.
• Receiver: Antenna Type:Detachable
• Receiver: Signal/Noise Ratio:≥110dB (A-weighted)
• Receiver: Type:Portable
• Receiver: Front Panel Display:Yes
• Receiver: Displays:LCD
• Receiver: Outputs:1 x 1/8"
• Receiver: Dimensions:3.32" x 2.57" x 1.22"
• Receiver: Weight:0.35 lbs.
