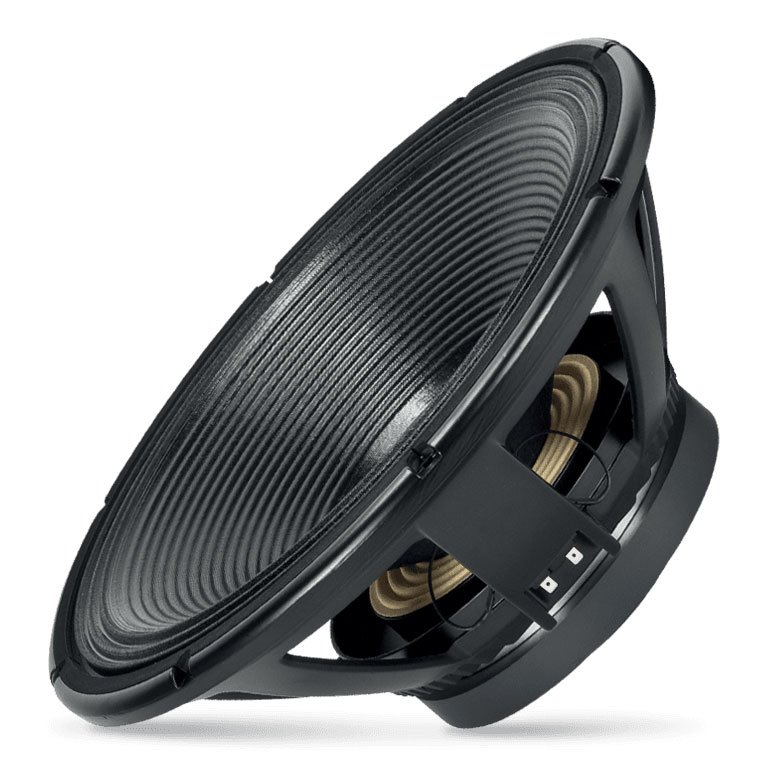

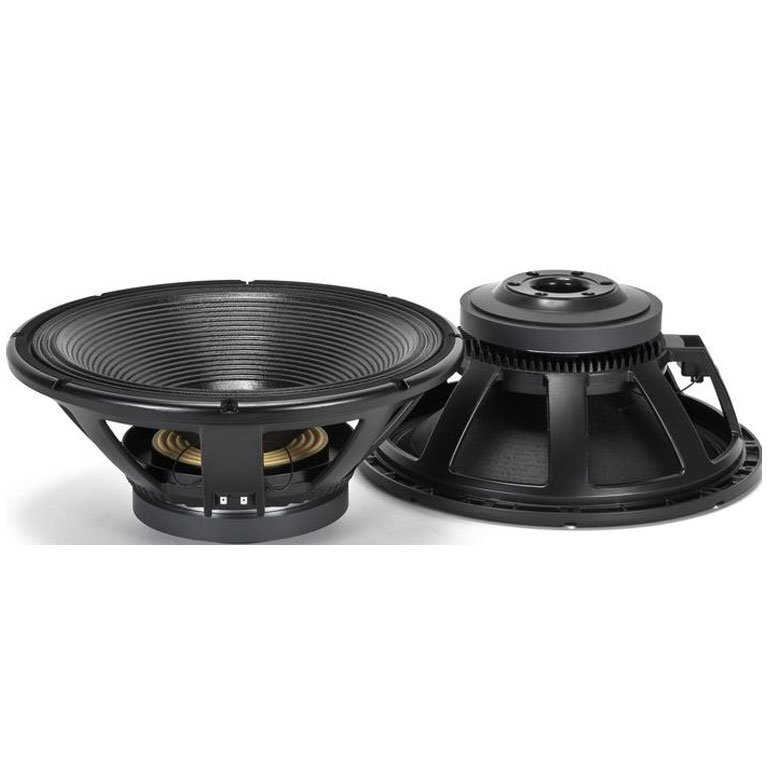

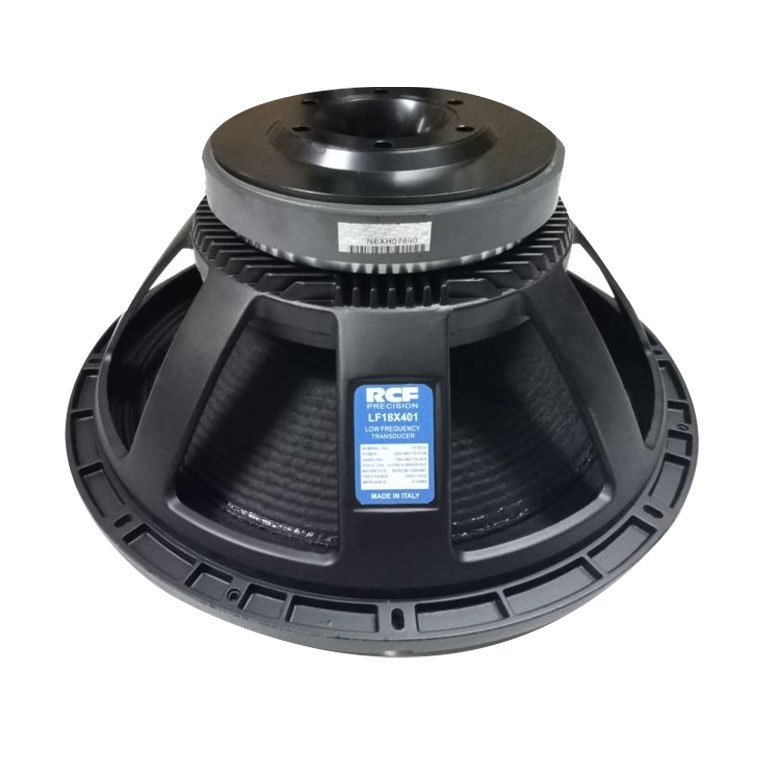

RCF LF18X401 3000 Watt 18 Inch Speaker Woofer

Spesifikasi RCF LF18X401 3000 Watt 18 Inch Speaker Woofer

RCF LF18X401 3000 Watt 18 Inch Speaker Woofer

Very linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range. The LF18X401 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 50 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.

Features:
Manufacturer: RCF
Size (Inches): 18
Power Output (Watt): 1500
Impedance (Ohm): 8
Frequency Response from (Hz): 25
Frequency Response to (Hz): 1000
Sensitivity (dB): 97.5

Specifications
Nominal Diameter
18 inch / 457 mm
Rated Impedance
8 ohm
Program Power (watt)
3000 W
Power handling capacity
1500 W
Sensitivity
97.5 dB
Frequency range
25 - 1000 Hz
Effective piston diameter
395 mm / 15.55 inch
Max. Excursion Before Damage
50 mm / 1.97 inch
Minimum Impedance (ohm)
6.5 ohm
Voice Coil Diameter
4.0 inch / 102 mm
Voice Coil Winding Material
Copper
Voice Coil Length
30 mm / 1.18 inch
Number of layers
2
Kind of layers
inside/outside
Top Plate Thickness
15 mm / 0.59 inch
Cone Design
Straight
Surround Material
Polycotton
Surround Design
Triple roll
Magnets
Ceramic
Dual-force air ventilation
Yes
Spider
03
Thiele - small parameters
Resonance frequency (Fs)
30 Hz
DC resistance (Re) (ohm)
5.40 ohm
Mechanical factor
7.40 Qms
Electrical factor
0.31 Qes
Total factor
0.30 Qts
Bl factor (Bl) (T x m)
26.50 T x m
Effective moving mass (Mms)
215.0 g
Equivalent Cas air loaded (Vas)
274.0 liters
Effective piston area (Sd)
0.120 m2
Max. linear excursion (Xmax)
12 mm
Voice coil inductance @ 1kHz (Le1k)
0.83 mH
Half-space efficency (Eff)
2.30%
Mounting information
Overall diameter
465 mm / 18.31 inches
Bolt circle diameter
442-447 mm / 17.4-17.6 inch
Bolt hole diameter
7 mm / 0.28 inch
Front mount baffle cut-out
424 mm / 16.69 inch
Rear mount baffle cut-out
425 mm / 16.73 inch
Volume occupied by the driver
6.5 liters / 0.26 ft3
Standard compliance
Safety agency
CE compliant
Size / Weight
Height
196 mm / 7.72 inches
Diameter
465 mm / 18.31 inches
Weight
12.5 kg / 27.56 lbs
Shipping information
Package Height
254 mm / 10 inches
Package Width
524 mm / 20.63 inches
Package Depth
494 mm / 19.45 inches
Package Weight
15 kg / 33.07 lbs
