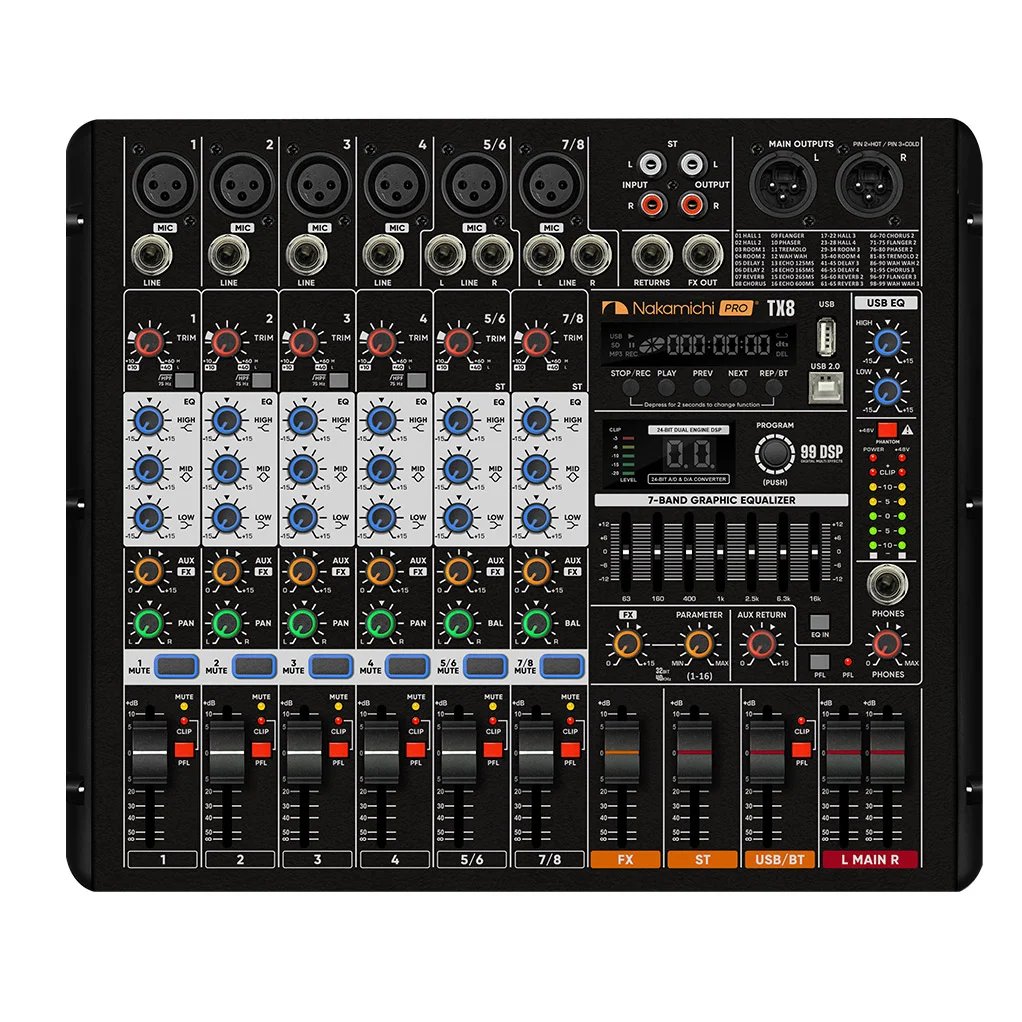

Nakamichi TX8 Professional 8 Channel Audio Mixer

Spesifikasi Nakamichi TX8 Professional 8 Channel Audio Mixer

Nakamichi TX8 Professional 8 Channel Audio Mixer

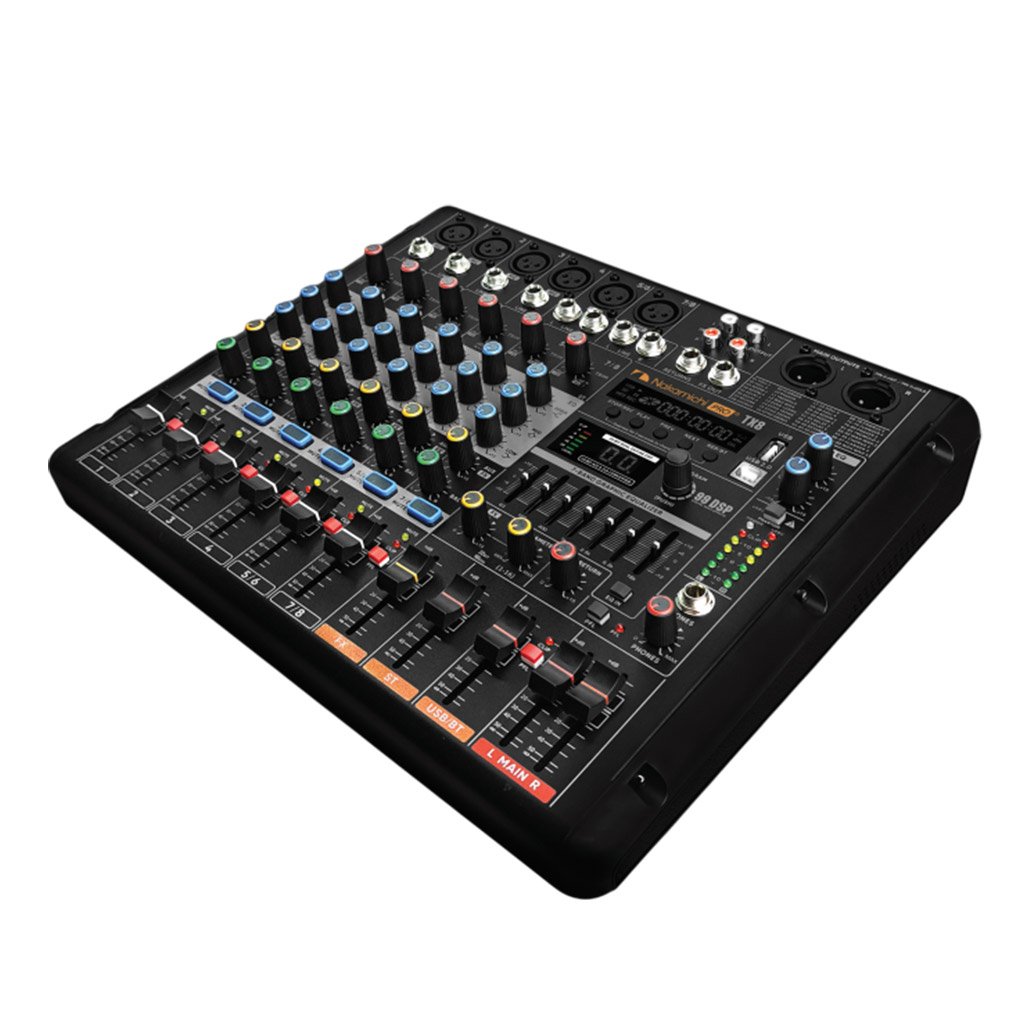

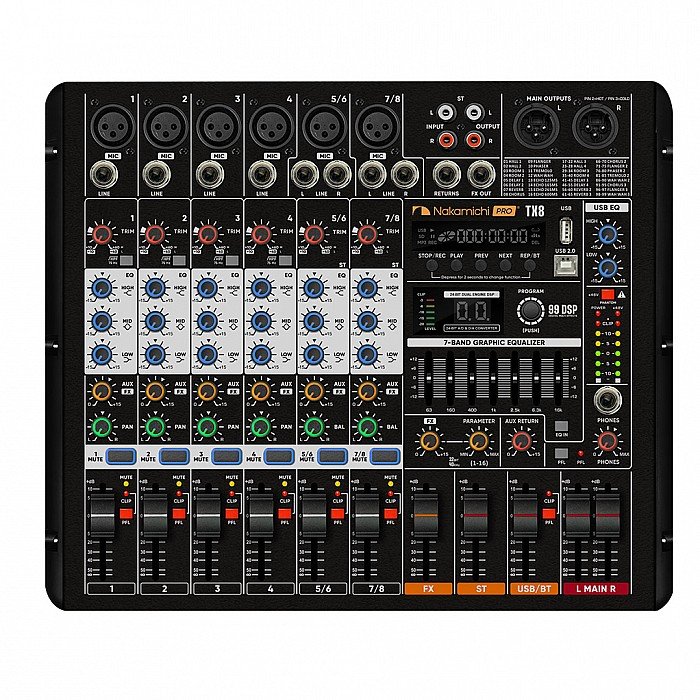

Professional Audio Mixer Nakamichi TX-8

The TX8 mixer features 8 channels, offering a versatile input configuration with 6 microphones and 8 line inputs. It includes 4 mono channels for microphones and instruments, as well as 2 stereo channels for line-level sources. This setup allows for flexible audio mixing and control, which is suitable for various applications from live performances to studio recordings.

Packaging Contents:

• 1x Mixer TX8
• 1x Power cable
• 1x User manual
• 1x Warranty card
•

Key Features:
The TX8 mixer features 8 channels, offering a versatile input configuration with 6 microphones and 8 line inputs. It includes 4 mono channels for microphones and instruments, as well as 2 stereo channels for line-level sources. This setup allows for flexible audio mixing and control, which is suitable for various applications from live performances to studio recordings.

Specification:
Type: XLR, electronically balanced, discrete input circuit
@00 source resistance: -134 dB/135.7 dB A-weighted
@500 source resistance: -131 dB/133.3 dB A-weighted
@150 0 source resistance: -129 dB/130.5 dB A-weighted
Frequency response: <10 Hz-150 kHz (-1 dB), <10 Hz-200 kHz (-3 dB)
Gain range: +10 to +60 dB
Max. input level: +12 dBu @+10 dB Gain
Impedance: approx. 2.6k balanced
Signal-to-noise ratio: 110 dB/112 dB A-weighted (0 dBu In @ +22 dB gain)
Distortion (THD+N): 0.005%/0.004% A-weighted

Signal Attenuation (Crosstalk Attenuation)
Main output fader off: 90dB
Channel mute: 89dB
Channel fader off: 89dB

Digital Effector (DSP)
Converter: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate: 40 kHz

Frequency Response (Microphone input to main out)
<10 Hz-90 kHz: +0 dB/-1dB
<10 Hz-160 kHz: +0 dB/-3 dB
