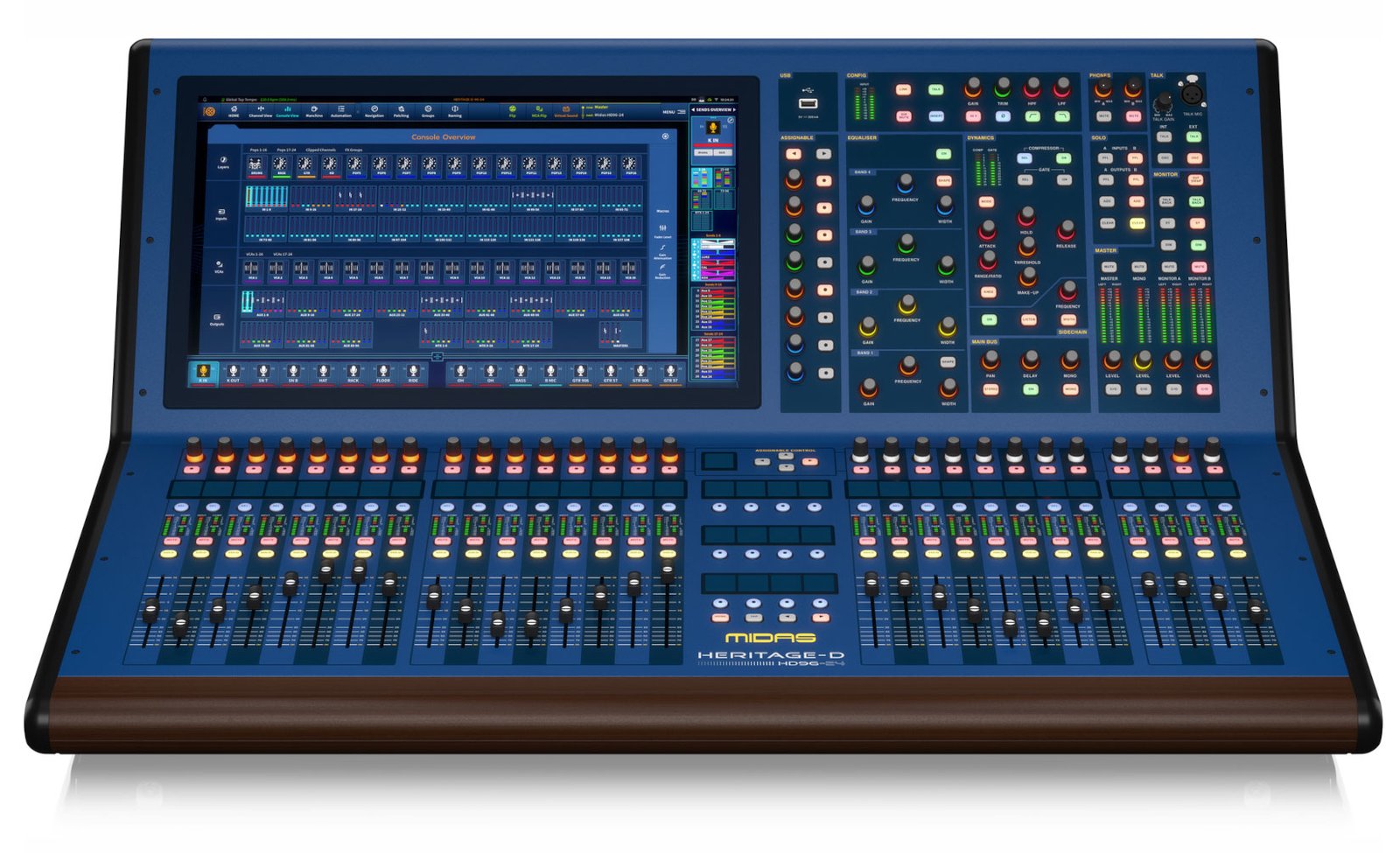

Midas Heritage HD96 IP Digital Mixer

Midas Heritage HD96 IP Digital Mixer

Spesifikasi Utama

• Merek: Midas
• Model: Heritage-D HD96-AIR-CC-IP
• Jenis: Live Digital Mixer / Digital Console
• Input Channel: Hingga 144 channel
• Mix Bus: 123 mix bus
• Sample Rate: 96 kHz
• Processing: 64-bit floating point
• Display: 21″ Full HD glare-resistant capacitive touchscreen
• Analog Input: 8 × XLR balanced dengan Midas mic preamp
• Analog Output: 8 × XLR balanced
• AES50: 4 × port
• HyperMAC: 2 × koneksi digital audio
• VCA Groups: 24
• POPulation Groups: 24
• Graphic EQ: Hingga 48 × 1/3-octave
• DSP Effects: Hingga 24 multi-channel effects engine
• Talk/Communication: 16 independent shout inputs & 12 dedicated outputs
• Processing Engine: Graviton Mk 2 dengan 64-bit summing
• Expansion: 2 × CM1 expansion slots untuk opsi AES50, Dante, MADI, atau USB
• Power Supply: Dual redundant universal power supply
• Kontrol: Multi-touch dan user-assignable controls
• Fader Expansion: Mendukung hingga 4 × HD96-FB16
• Fungsi: Live mixing, FOH, monitor mixing, broadcast, touring, dan event profesional.
