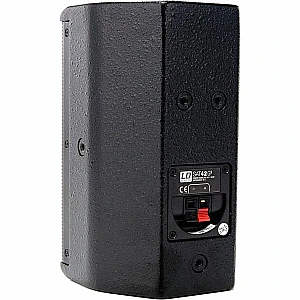

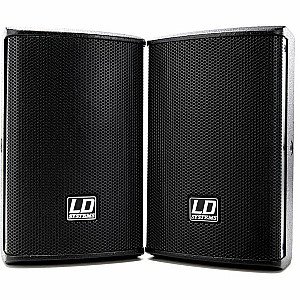

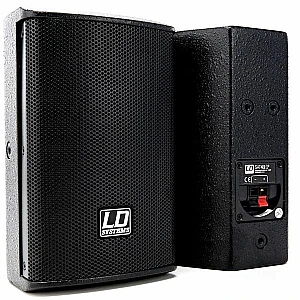

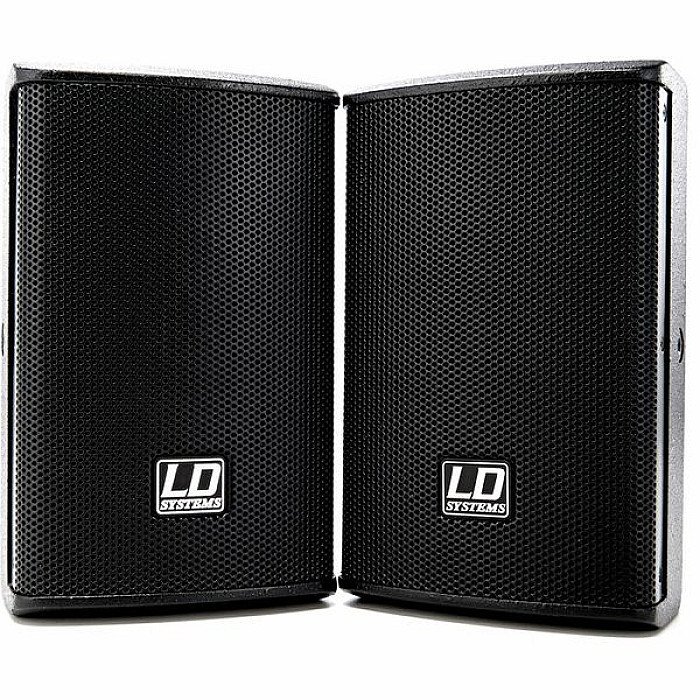

LD Systems SAT 42 G2 4 inch Passive Installation Monitor Speaker, Black (pair)

Spesifikasi LD Systems SAT 42 G2 4 inch Passive Installation Monitor Speaker, Black (pair)

LD Systems SAT 42 G2 4 inch Passive Installation Monitor Speaker, Black (pair)

The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home. A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition. The cabinet with a rugged textured coatingis made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.

Features

• 4" Woofer
• 1" Kapton tweeter
• RMS / max. 60/100 W
• Frequency response: 75 Hz to 20 KHz
• Max. SPL: 103 dB
• Impedance: 16 ohms
• M6 fly points
• Dimensions: 140 x 230 x 125 mm
• Weight: 2.5kg
• Incl. wall bracket
• Contents: 1 pair
•

Specification

General
Product type Installation Loudspeakers
Type Wall-mounted Loudspeaker
Low/mid Woofer dimensions 4 inch
Woofer dimensions (mm) 101 mm
Woofer magnet Ferrite
Woofer brand Custom-made
HF driver dimensions 1 "
HF driver dimention (mm) 25 mm
HF driver magnet Ferrite
HF driver brand Custom-made
Dispersion (H x V) 60 x 60 °
Load rating (RMS) 60 W
Frequency response 75 - 20000
SPL (1W/1m) 85 dB
Max. SPL 103 dB
Impedance 16 Ohm(s)
Protection circuits HF Driver
Loudspeaker inputs 1
Speaker input connections Clamp connector
Speakers per amplifier channel (DSP44/45K) 8
Cabinet material 12 mm MDF
Cabinet surface texture paint
Cabinet colour Black
Cabinet construction Closed
Width
140 mm
Height
230 mm
Depth
125 mm
Weight
5 kg
