Spesifikasi LD Systems LDU306IEM Wireless In Ear Monitoring System

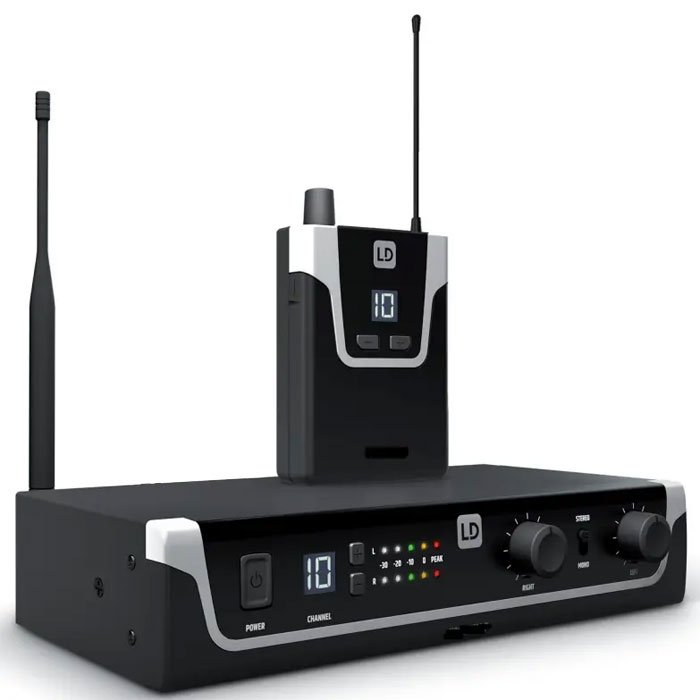

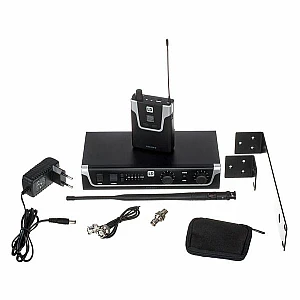

LD Systems LDU306IEM Wireless In Ear Monitoring System

The wireless U300® in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300® in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz+ 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

We have developed the U300® in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength. The U300® bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.

FEATURES

• Reliable wireless transmission with a range of up to 100 m
• Low-reaching frequency response
• 12 selectable channels
• Choice of stereo or mono mode
• Up to 6 systems can be used simultaneously
• 10-hour bodypack operating time with two AA batteries
• An unlimited number of bodypacks can be set to the same transmission frequency
• Channel and RF reception displayed on bodypack
• The transmitter in a rugged metal casing with stereo level display
• Removable antenna with BNC connection
• 19” rack assembly kit included.
•

Specifications
General
Product type In-ear Monitoring
Transmission frequency range 655 - 679 MHz
Weight 1,51 kg

LDU306IEMR - LD Systems U306 IEM Receiver
Product type In-ear Monitoring , In-ear Monitoring Accessories
Type Receivers
Transmission frequency range 655 - 679 MHz, 655 - 679 MHz
Channels 12
Transmission method FM, mono/stereo
Frequency response 50 - 16.000
Total Harmonic Distortion (THD) 0.25 %
Audio output 3.5 mm TRS
Minimum connected impedance 16 Ohm(s)
Max. audio output level 100 (@ 16 Ohms load capacity) mW, 73 (@ 33 Ohms load capacity) mW
Antenna connector Fixed to housing
Controls Channel down , Channel up , On/off switch , volume control
Indicators LC display , RF (LED)
Power supply
2 x 1.5 V AA
Operating time < 10 hours
Width 64 mm
Height 103 mm
Depth 24 mm
Weight
0,085 kg
