Spesifikasi Laney AH80 Audiohub Multi-Instrument Combo Amplifier

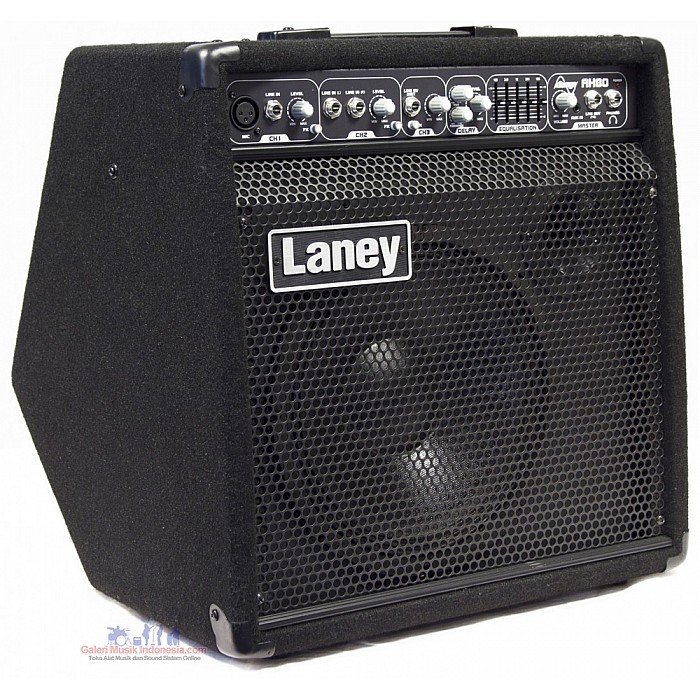

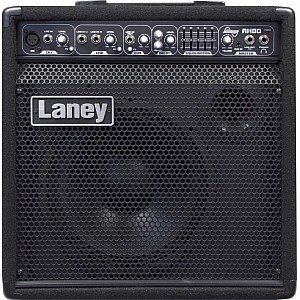

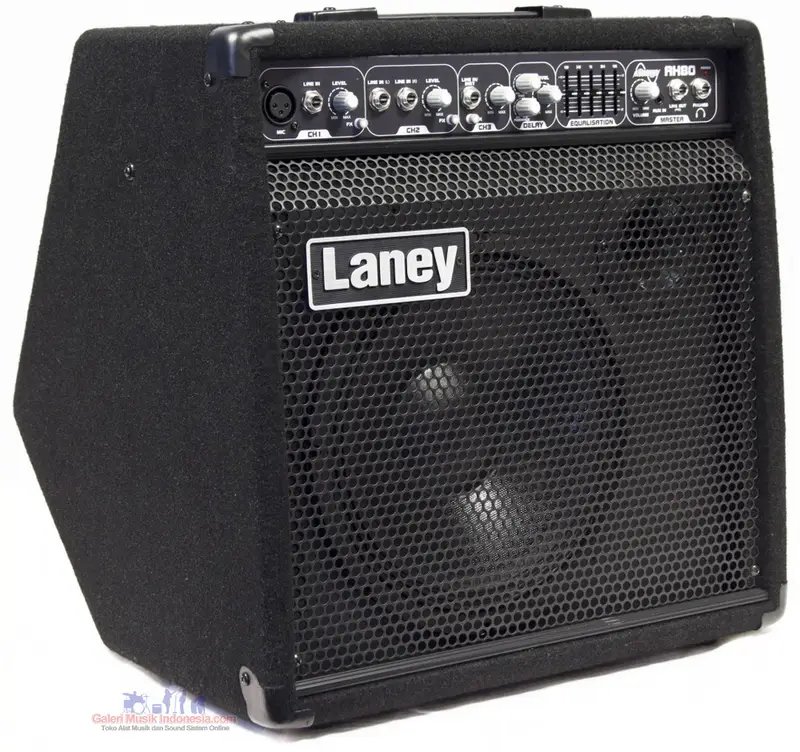

Laney AH80 Audiohub Multi-Instrument Combo Amplifier

The AH80 multi-input combo features 3 channels, 5-band graphic master EQ and Digital Delay. 80W RMS power is coupled to a 10 in. woofer plus tweeter.

The principle behind the Audiohub range is simple: "All instruments welcome!"

Audiohub combos deliver optimum performance, flexibility and sound quality for a wide array of audio inputs: Keyboards, e-drums, mics, acoustic and electric instruments and playback are all at home with an Audiohub combo.

Flexbility

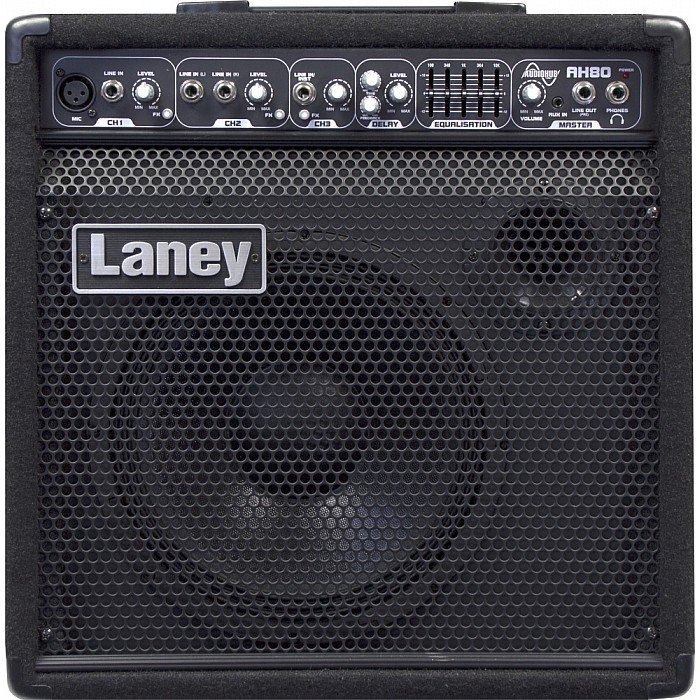

Designed with flexibility in mind, the AH80 has 3 independent channels and can accommodate a variety of input options simultaneously via XLR, Jack and Mini Jack connectors. In addition the front panel features a Line Out to link to another amplifier plus a Phones jacks for silent use.

Graphic Equalization
A 5-band Master Graphic EQ allows for detailed, efficient control of tone shaping.

Digital Delay
The AH80 features on board Digital Delay effects with comprehensive control over Delay Time, Feedback and Level. Digital Delay can then be assigned individually to each channel.

Dual-Position Cabinet Design
The AH80 features a dual-position cabinet design so can be used as a conventional stage combo or in ‘kickback’ position as a monitor

Dual-Component Speaker System
The AH80 houses a 10-in. custom-designed woofer for bass and mid frequencies plus a HF tweeter for high end clarity and sparkle.

• Power: 80W
• Three channels: Ch 1: Balanced XLR/Unbalanced Line; Ch 2: Stereo Unbalanced Line; Ch 3: Hi-Z Instrument
• Four inputs
• Speaker: 1x10 custom driver
• Controls:, volume, level, 5-Band Graphic EQ, FX switch, delay feedback, delay time, delay level
• Built-in digital delay
• Aux. input
• Headphone output
• Kickback cabinet design
• Heavy-duty metal grille
• Line out
• Dimensions: 17.12 in. x 16.33 in. x 15.56 in.
• Weight: 29.7 lb.
