Behringer Xenyx 1002SFX 10 Input Analog Mixer

Spesifikasi Behringer Xenyx 1002SFX 10 Input Analog Mixer

Behringer Xenyx 1002SFX 10 Input Analog Mixer

XENYX 1002SFX
The XENYX 1002SFX analog mixer features 10 inputs allowing you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting or live applications. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V phantom power for connecting even hi-end studio microphones.

The XENYX “S” series can be connected to any computer or mobile device making it super easy to integrate digital sources with analog equipment. It can also be used as a versatile sub mixer for feeding network enabled audio devices with several other audio signals. Two mono channels with EQ and Low Cut, plus 4 stereo channels, a stereo RCA streaming input and stereo USB input allow you to blend a total of 14 audio signals for streaming, monitoring via headphones or on high-quality TRS outputs. The mixer delivers crystal-clear audio for high-quality streaming, plus it comes with an amazing Klark Teknik FX processor with a hundred presets to add that extra spice to your mix.

Control Made Easy

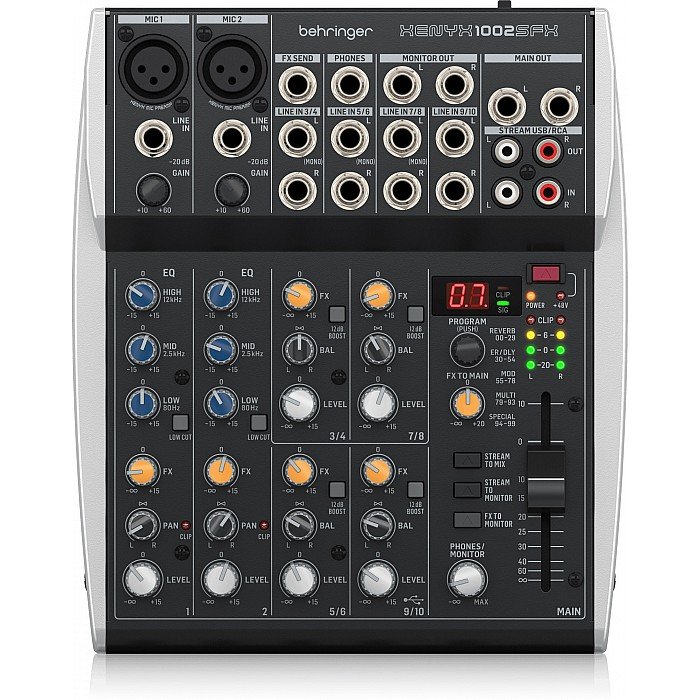

The 1002SFX features level, panorama/balance and effect send controls on all channels and allows for precise sound shaping for any input source. Mono channels have additional Gain controls and 3-band EQ with switchable Low Cut, while stereo line-level channels offer a switchable 12 dB boost. The FX send control per channel lets you use the internal stereo effects programs and/or plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 9/10, then the stereo 9/10 channel will receive the USB input signal and its control can be used to adjust the USB level conveniently. Finally, a 60-mm Main fader ensures extremely smooth volume control of your output mix.

• Mono Inputs
• Microphone Input
• Balanced XLR, discrete input circuit
•
• Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
•
• Frequency response Gain +10 dB: 10 Hz to 150 kHz
•
• Frequency response Gain +60 dB: 20 Hz to 70 kHz
•
• Gain range: +10 dB to +60 dB
•
• Max input level @ +10 dB Gain: +12 dBu
•
• Input Impedance 2 kΩ balanced
•
• Distortion (THD + N) 1 kHz
•    @ +10 dB Gain: 0.005%
•
• Mono Line Inputs
• 1/4" TRS connector balanced
•
• Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
•
• Gain range: -10 dB to +40 dB
•
• Max input level @ 0 dB Gain: +21 dBu
•
• Stereo Inputs
• Stereo Line
• 1/4" TRS connector balanced
•
• Frequency response: 20 Hz to 200 kHz
•
• Impedance: 22 kΩ Balanced, 10 kΩ unbalanced
•
• Max input level @ 0 dB Gain: +21 dBu
•
• STREAM Inputs (Analog)
• RCA connector unbalanced
•
• Impedance: 10 kΩ unbalanced
•
• Max input level: 10 dBu
•
• EQUALIZER
• Low
• 80 Hz/±15 dB
•
• Mid
• 2.5 kHz/±15 dB
•
• High
• 12 kHz/±15 dB
•
• Main, Monitor & FX Send Outputs
• Type
• 1/4" TRS connector impedance-balanced
•
• Impedance
• 120 Ω
•
• Max output level
• 21 dBu
•
• Phones Out
• Type
• 1/4" TRS connector unbalanced
•
• Impedance
• 23 Ω
•
• Max output level
• 19 dBu/150 Ω
•
• STREAM out (Analog)
• Type
• RCA connector unbalanced
•
• Impedance
• 1 kΩ unbalanced
•
• Max output level
• 10 dBu
•
• Main Mix noise
• Main Mix @ -∞
• -108 dBu A-weighted
•
• Channel @ -∞
• -108 dBu A-weighted
•
• FX Section
• Type
• Klark Teknik
•
• Converter
• 24-bit Sigma Delta
•
• Sample Rate
• 40 kHz
•
• USB
• Type
• Type-B connector
•
• USB Audio Data
• 48 kHz 16 Bit
•
• UAC2 Class Compliant
• stereo in/out
