Behringer WING Compact 48 Channel 28 Bus Full Stereo Digital Mixing Console

Spesifikasi Behringer WING Compact 48 Channel 28 Bus Full Stereo Digital Mixing Console

Behringer WING Compact 48 Channel 28 Bus Full Stereo Digital Mixing Console

Small, Powerful, and Built Around You

When you need a mixer that can easily handle anything--and operate like it was custom-built for whatever comes your way, Behringer’s unique new-concept Wing family of digital mixers is revolutionizing the industry. Capable of fantastic audio reproduction, stereo/mono operation, loaded with a powerful FX Suite, award-winning Midas preamps, and limitless adaptability-- Behringer Wing is your “personal,” 48-track, 28-buss digital mixing console. Because fully featured digital mixers can be overwhelming and intimidating, Behringer’s innovative new approach to digital mixing is intuitive and easy for both the pro and casual user. With the potential to expand, connect, configure, and reconfigure workflow to suit your unique needs, the Behringer Wing is in a class of its own. The Behringer WING Compact has the same immense 48-channel capability, processing power, true-stereo effects, expansion slots, and digital I/O of the full-size WING 48 in a portable, compact 13-fader console.

Unique audio Source treatment and grouping

Focusing on audio-origin type rather than a simple channel number assignment, this system emphasizes the unique treatment applied to each input “source.” Each source (input) can have a variety of treatments assigned based on how you want to mix and enhance each signal. Apply Stereo, mono, or mid-side and add phantom power, set gain, meter, mute, and more with each incoming signal. Then, label each source with a name, icon, color, and several tags for specific grouping and filtering treatments. Now, you can apply each treatment to the type of audio source that you're mixing in easily identifiable groups. With Behringer’s Wing Co-Pilot App, you can label Sources while patching on stage, regardless of whether the signal is patched to a channel, SD recording, or any other output, for instant source recognition.

The “personal” 48-channel digital mixer

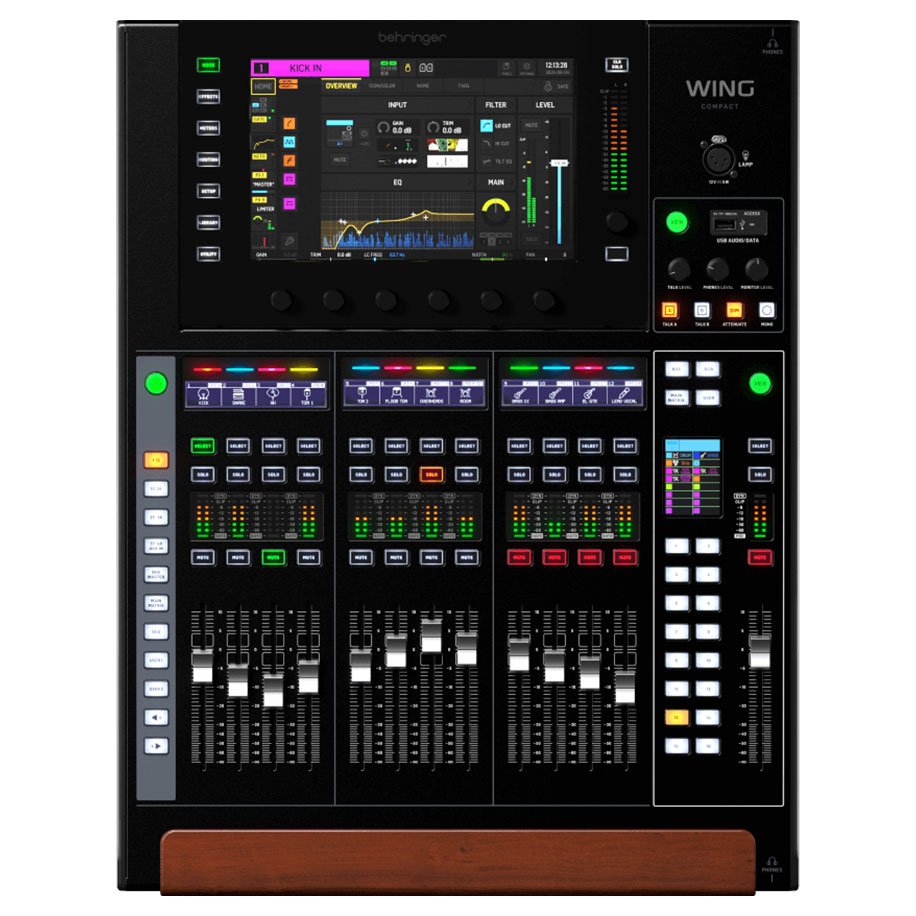

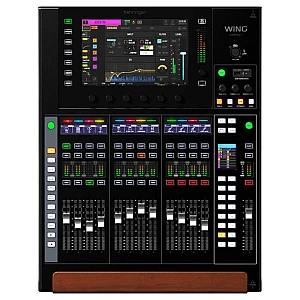

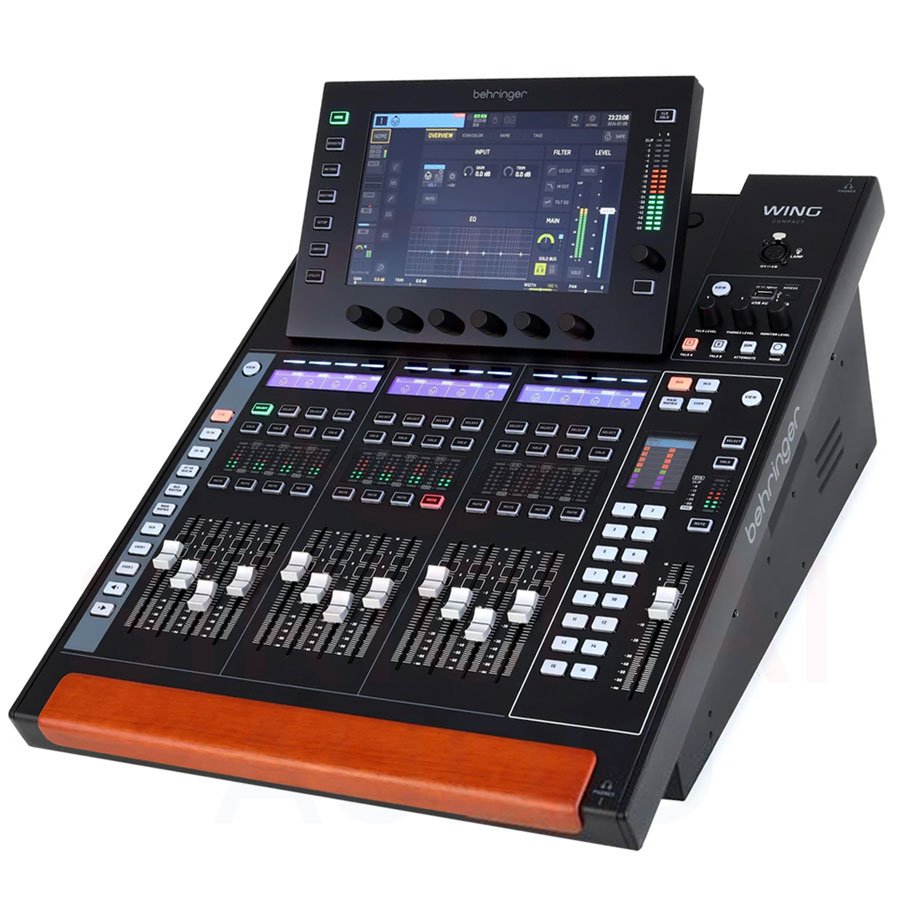

Mixing old-school analog with modern digital mixer operation and a DAW-like workflow, the Wing-48 is anything but an ordinary mixing console. The control surface utilizes a 10” flip-up capacitive touchscreen interface with rotary controls, offering the same innovative user interface as the full-size WING console. The three sections of 13 automated faders can be configured and reconfigured according to your needs. For instance, you can assign a specific bus-send fader alongside the corresponding channel fader or set up a dedicated channel for highly dynamic sources-- like lead vocals or a soloist--right where you want it. With the touch-sensitive rotary controls, you can even work on selected channel processing while the main display is used for other functions.

Studio Quality Tone Shaping and FX’s

Great sound begins with 8 XLR phantom power-equipped microphone inputs and outputs with pro-series MIDAS preamps for highly detailed vocal performances. All input channels feature LO, hi-cut filters, all-pass, tilt EQ, sound Maxer, and a 6-band parametric EQ. All buses, matrices, and mains also feature an 8-band parametric EQ plus 8 digital emulations of world-favorite hardware equalizers. Wings onboard FX’s rack out 8 stereo processors with outstanding reverb using TC Electronics VSS3 algorithms, Lexicon, Quantec, and EMT emulations. For even more FXs, another set of 8 true-stereo processors features a wide range of modulation FX, EQ, Guitar Amp, speaker simulators for quiet stage applications, and more.

Massive Flexibility, Connectivity, and Expansion potential

With 48 stereo channels, including 8 dedicated high-performance XLR and 8 auxiliary ¼” TRS inputs for 16 analog inputs with 2 groups of gain-sharing, Wing’s Analog I/O can be utilized for outboard signals from media players or computers. Using the new Klark Teknik “StageConnect” interface, connect up to 32 channels of ultra-low latency 24-bit audio ins and outs over a single XLR cable. WING also provides 3 AES50 SuperMAC audio networking ports (for connecting digital stage boxes) or sharing up to 144 input/output streams with other mixing consoles. There are 48x48 channels of USB audio and another 64x64 channels of Audio over IP (module optional), plus AES/EBU stereo I/O. The Wing expansion card slot can accommodate ADAT, MADI, DANTE, and WSG and offers another 64x64 audio channel in/out and so much more.

Features:

• Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING
• 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels
• 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains
• 13 smooth-feeling motorized 100mm faders in 3 separate, configurable sections
• 10.1-in. capacitive touchscreen, adjustable display wheel, and rotary controls provide touch-sensitive channel editing
• Enhanced customization using 8 front buttons to do whatever your workflow needs
• Bus/Main/DCA section for fader usage and effect and DCA spill
• 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound
• 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
• AES50 networks are compatible with Midas M32 and Behringer X32 mixers
• 32-channel StageConnect interface for personal monitoring or analog I/O boxes
• Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and a GPIO port
• Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
• WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
• Optional expansion cards supply Dante support
• Built-in 48-in/48-out USB audio interface with HUI and Mackie Control DAW remote functionality
• Sources put the emphasis on your source audio rather than on your inputs and channels
• Apply names, icons, and colors to each Source for at-a-glance identification
• Each channel can be either mono, stereo, or mid-side — no channel linking required
• 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs
• 19-in. rackmountable in 3 positions
•

Specifications

• Type: Digital Mixer
• Channels: 48 Stereo

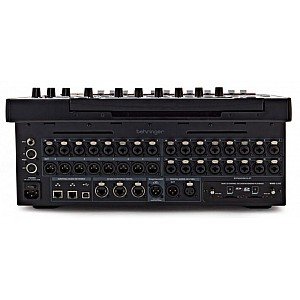

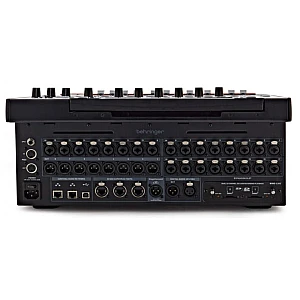

• Inputs - Mic Preamps: 24 x XLR-1/4" combo (mic/line)
• Phantom Power: Yes

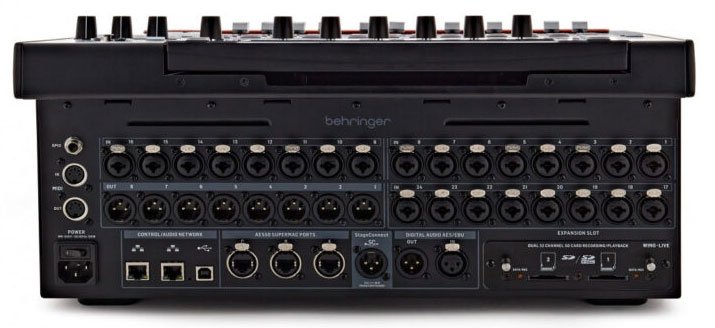

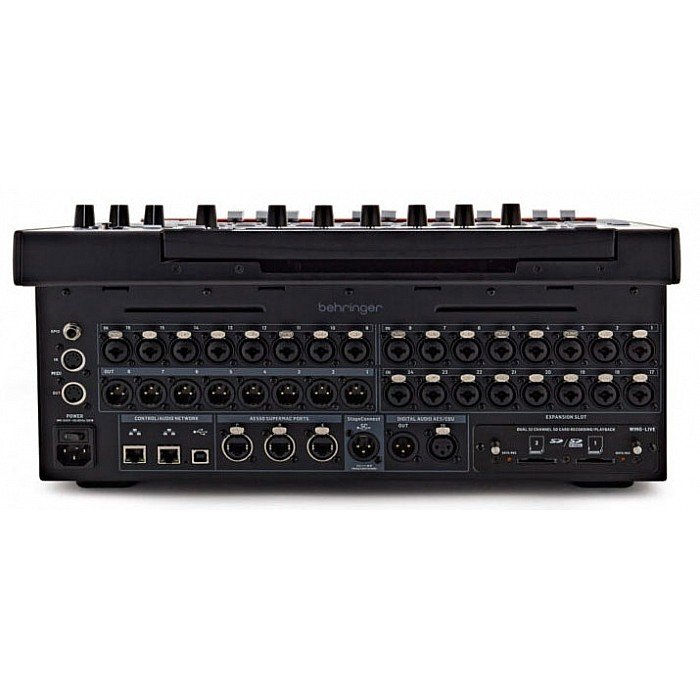

• Outputs - Main: 8 x XLR
• Inputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Send/Return I/O: 8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Busses/Groups: 8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Inserts: Dual Inserts per Bus, FX Insert Slot
• MIDI I/O: In/Out
• Data I/O: 2 x Ethernet (control/audio network)
• Headphones: 2 x 1/4"
• USB: 1 x Type B, 1 x Type A
• Computer Connectivity: USB 2.0, 24-bit/48kHz (48 x 48)
• Remote: 1 x 1/4" (GPIO)
• I/O Expansion Slots: 1 x Expansion Port (24-bit/48kHz)
• Faders: 12 x 100mm Motorized
• A/D Resolution: Up to 24-bit/192kHz
• EQ Bands: 6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects: 8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing: Full Dynamics Processing
• DAW Control: Yes (HUI, Mackie)
• Screen: 10" Capacitive Touchscreen, Adjustable Swivel
• Storage: 2 x SD Card Slot (dual 32 track max)
• Power Source: Standard IEC AC cable
