Behringer WING 48 Channel Digital Mixer

Behringer WING 48-Channel Digital Mixer with 24 Fader Control Surface and 10″ Touch Screen

Spesifikasi Utama

Type: Digital Mixing Console
Model: WING
Brand: Behringer
Input Channels: 48 Stereo FlexChannel
Buses: 28 Full Stereo Bus
Mic Preamps: 8 × Midas PRO Microphone Preamps
Analog Outputs: 8 × Midas PRO Outputs
Faders: 24 × 100 mm Motorized Faders
Display: 10.1″ Capacitive Multi-Touch Screen
Processing: Full Channel DSP Processing
EQ: 6-Band Parametric EQ
Effects: 16 Stereo FX Processor dengan 80+ Algorithms
USB Interface: 48 × 48 USB Audio Interface
Recorder: Dual SD Card Recorder hingga 64 Track
AES50: 3 × AES50 Network Port (hingga 144 I/O)
Network: Ethernet Remote Control
MIDI: MIDI In / Out
Rack Expansion: Support Dante / Waves SoundGrid / MADI Expansion Card
Dimensions: ±201 × 870 × 575 mm
Weight: ±24 kg

Fitur

• 48 FlexChannel yang dapat dikonfigurasi mono, stereo, atau M/S.
• 24 motorized fader dalam 3 bagian konfigurasi:
  • 12 fader
  • 8 fader
  • 4 fader
• 10.1″ touchscreen dengan interface multi-touch.
• 8 Midas PRO mic preamp dengan kualitas audio profesional.
• 28 stereo bus untuk kebutuhan monitor, IEM, dan routing kompleks.
• 16 stereo effects engine dengan berbagai algoritma.
• Dual SD card recorder/player hingga 64 track.
• USB audio interface 48-in / 48-out untuk recording dan DAW.
• Support Dante, Waves SoundGrid, dan MADI melalui expansion card.
• Remote control melalui aplikasi WING CoPilot, WING-Q, dan WING Edit.

Performa

Behringer WING menawarkan sistem mixing digital kelas profesional dengan kapasitas channel besar, routing fleksibel, dan processing internal lengkap. Kombinasi Midas PRO preamp, touchscreen workflow, motorized fader, serta jaringan AES50 membuatnya cocok untuk produksi live besar, konser touring, broadcast, dan instalasi audio profesional.

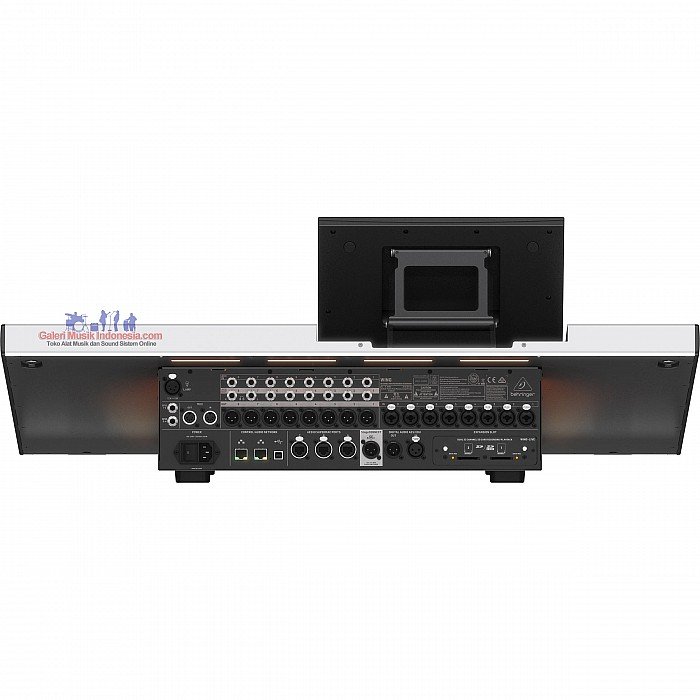

Konektivitas

• 8 × Midas PRO Mic Input
• 8 × Midas PRO Analog Output
• 3 × AES50 Digital Network Port
• USB 48×48 Audio Interface
• Dual SD Card Slot Recorder
• Ethernet Network Control
• MIDI In / MIDI Out
• Expansion Slot:
  • Dante
  • Waves SoundGrid
  • MADI
• StageConnect Interface
• GPIO Control Port

Kelengkapan

• 1 Unit Behringer WING Digital Mixer
• Power Cable
• Rack / Flight Case (opsional)
• Network Cable
• User Manual
