Spesifikasi Behringer Poly D 4-Voice Polyphonic Analogue Synthesizer

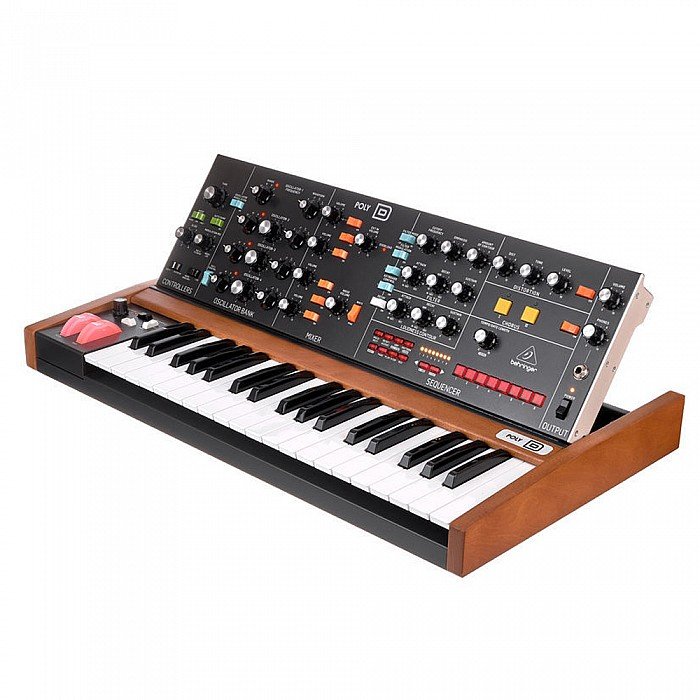

Behringer Poly D 4-Voice Polyphonic Analogue Synthesizer

Behringer Poly D 4-Voice Polyphonic Analogue SynthesizerAnalog 4-Voice Polyphonic Synthesizer with 37 Full-Size Keys, 4 VCOs, Classic Ladder Filter, LFO, BBD Stereo Chorus, Distortion, 32-Step Sequencer and Arpeggiator

POLY D
The 1970s spawned the first truly portable analog synthesizer, and while it was quickly adopted by lots of renowned musical artists including Jan Hammer, Chick Corea, Rick Wakeman, Jean-Michel Jarre, Isao Tomita and Keith Emerson to name a few, it was somewhat temperamental and very expensive. An ultra-affordable homage to that iconic synthesizer, with all the features of the original and then some, the Behringer POLY D lets you conjure up virtually any monophonic or polyphonic sound imaginable with incredible finesse and ease. The pure analog signal path is based on authentic VCO, VCF, VCA and ladder filter designs in conjunction with a dedicated and fully analog triangle/square wave LFO.

True to the Original
Great care has been taken in designing the POLY D including the true to the original “D Type” circuitry with its matched transistors and JFETs, ultra-high precision 0.1% thin film resistors and polyphenylene sulphide capacitors. This highly-focused attention to detail is what gives the POLY D its ultra-flexible sound shaping capability, which covers everything from super-fat bass and lead tones, stunning effects, progressive organ sounds – and all the way out to the otherworldly sounds of your imagination.

Big, Fat Tones
The inspired synthesizer tracks laid down in the 1970s and '80s are etched in the annals of progressive rock, wave and synth-pop music forever, making them truly classic in every sense of the word. POLY D’s pure analog signal path with legendary VCO, VCF and VCA circuits, lets you recreate all of that magic – or design incredibly fat and original sounds that will make you a legend in your own right!

• 4-Voice Polyphonic Analogue Synthesizer
• 37 Full-size velocity-sensitive keys
• 4-Voice polyphonic design with mono-, unison- and polyphonic mode
• 4 Analogue VCOs with triangular-, sawtooth- and pulse waveforms
• Noise generator with white and pink noise
• 24 dB Ladder filter with resonance
• Switchable low pass-/high-pass filter
• Analogue LFO with square-/ triangular waveforms
• 2 ADS envelope for VCF and VCA
• Analogue BBD stereo chorus
• Integrated distortion with tone control

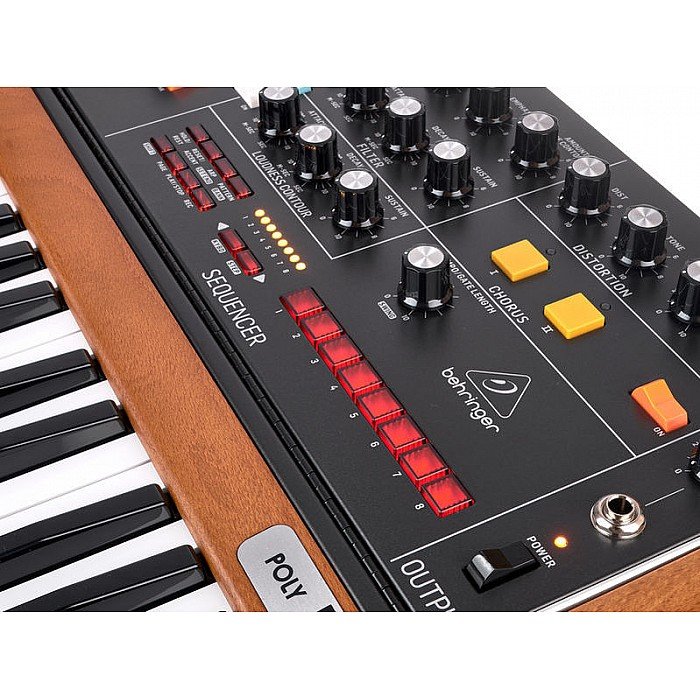

• 32-Step sequencer
• Arpeggiator

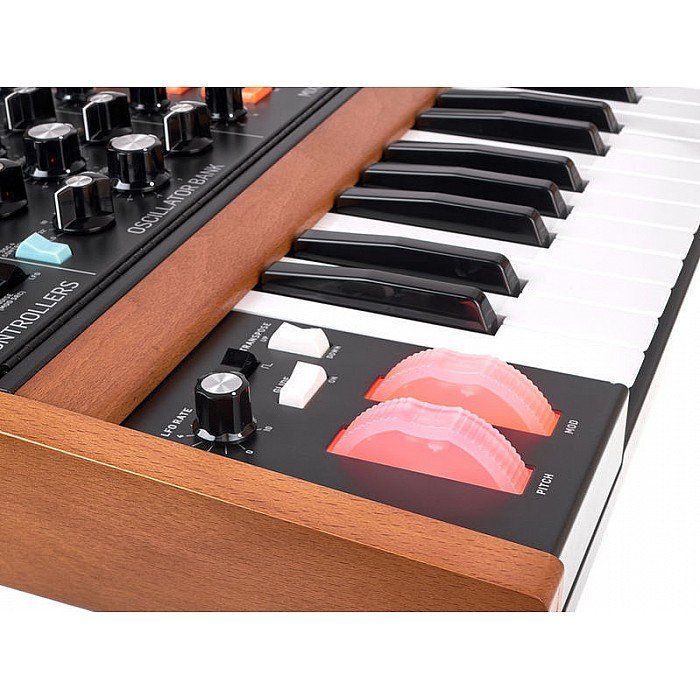

• Pitch- and modulation wheel
• Adjustable control panel and 84 controls for intuitive operation

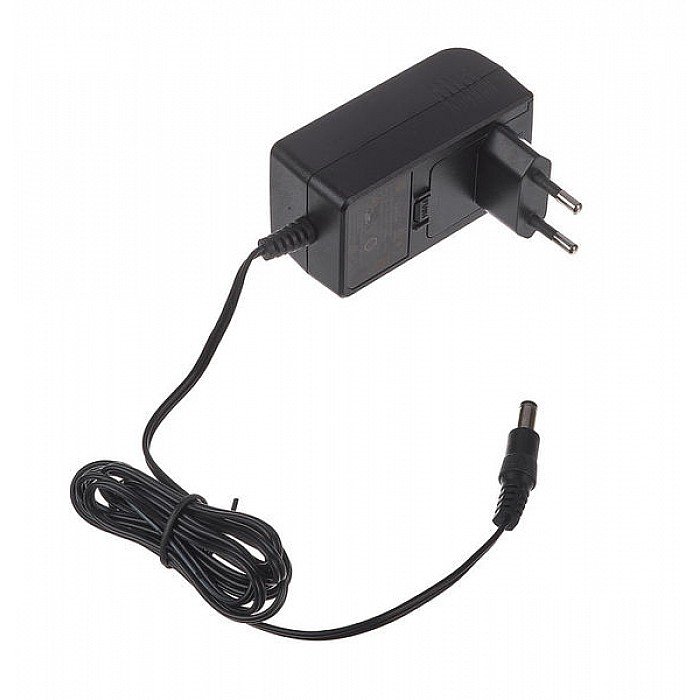

• Includes an external power supply (12 V DC)
• Suitable cover: Article Nr. 493960 (not included)
• Suitable case: Article Nr. 491245 (not included)
•

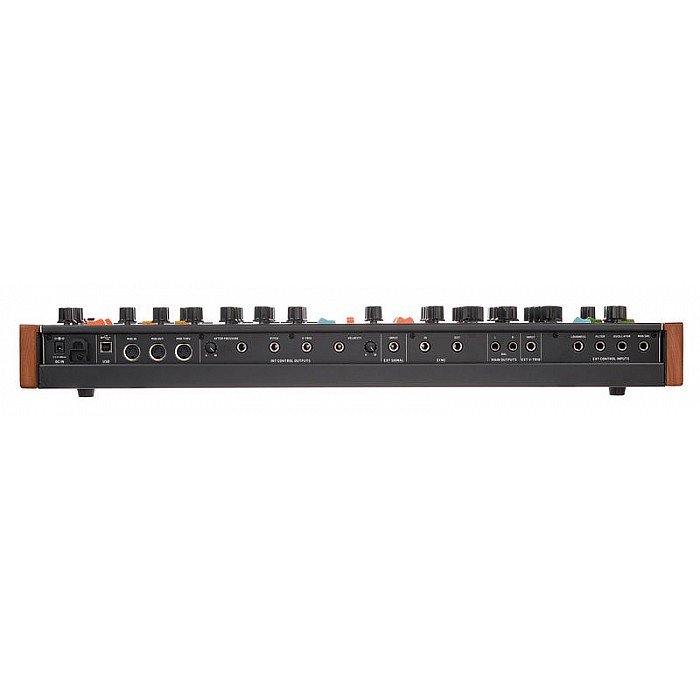

Connectors:

• Balanced stereo output: 2x 6.3 mm jack
• Adjustable stereo headphone output: 6.3 mm jack
• External audio input: 6.3 mm jack
• Inputs for V-trigger, modulation, pitch-CV, filter & loudness: 6.3 mm jack
• Sync In/Out: 6.3 mm jack
• Outputs for V-trigger, pitch, velocity and aftertouch: 6.3 mm jack
• MIDI In/Out/Thru
• USB-B port
• DImensions: 647 x 89 x 360 mm (W x H x D)
• Weight (kg): 10.2
